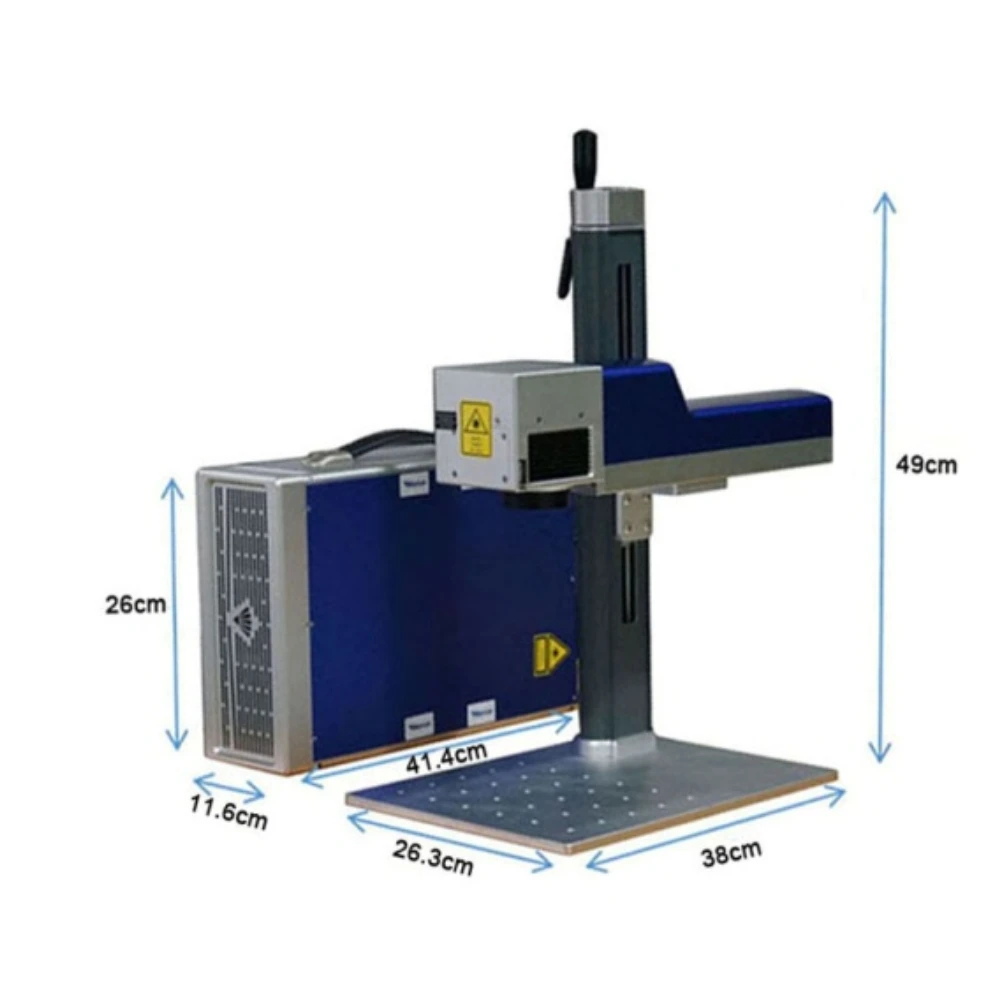

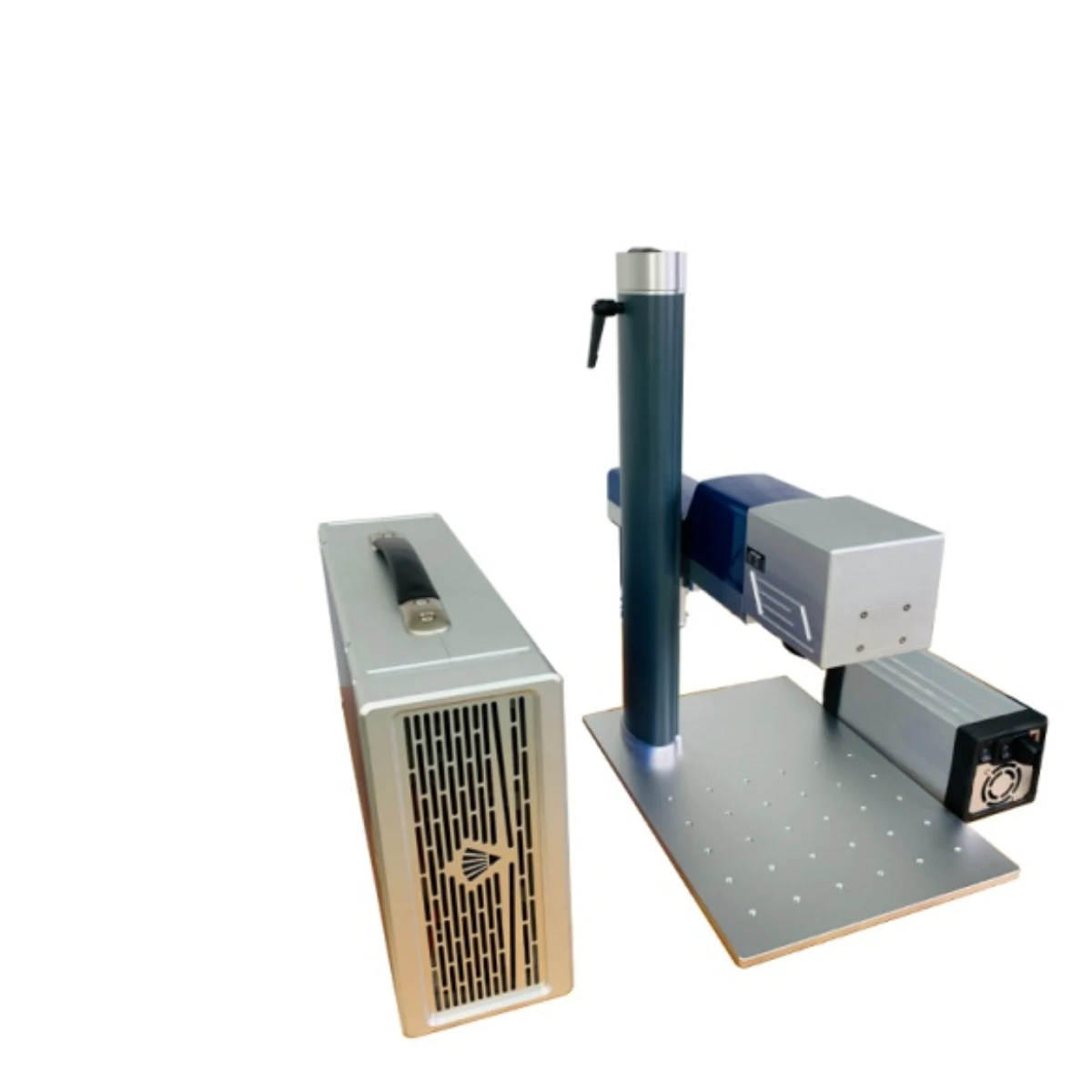

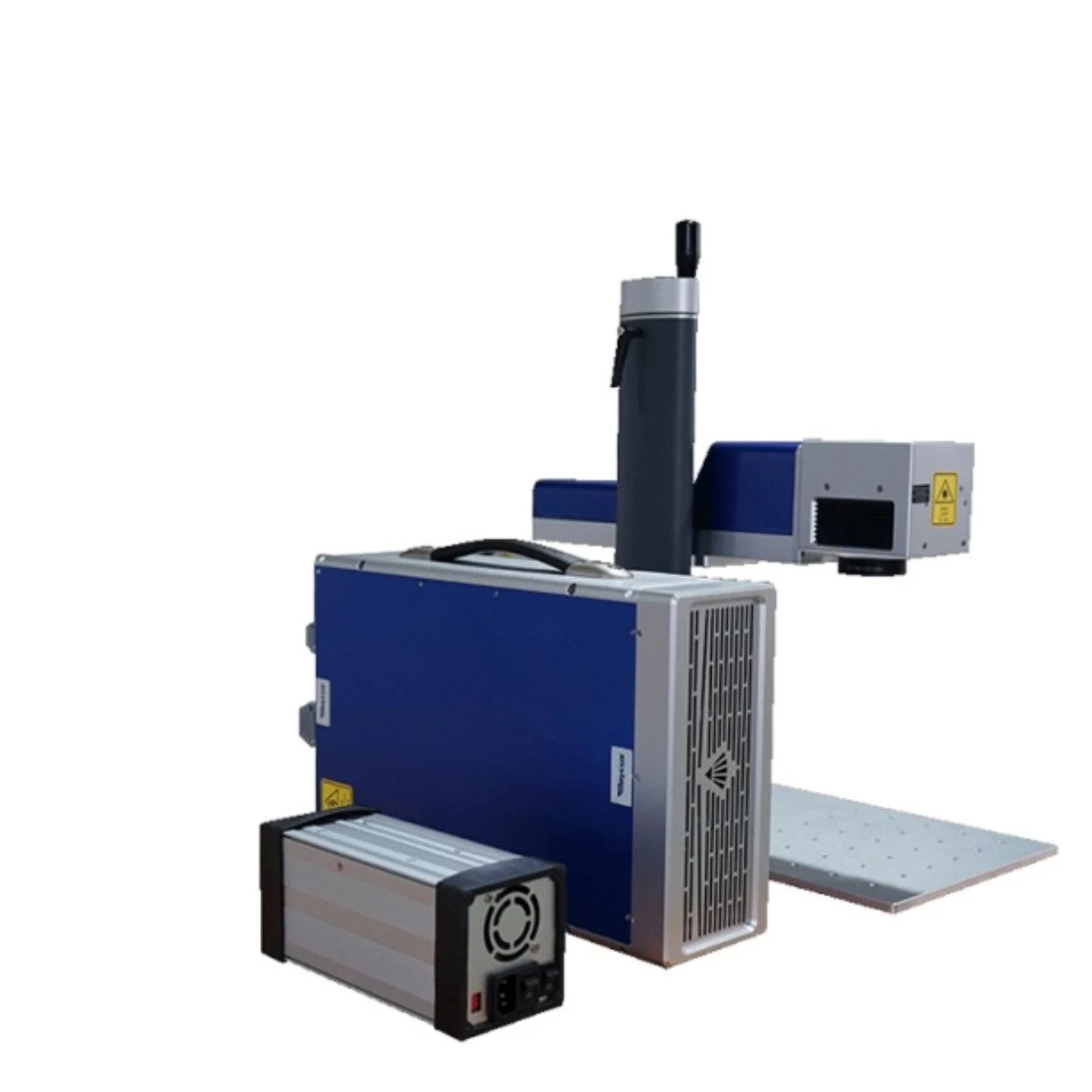

Smart fiber laser marking machine

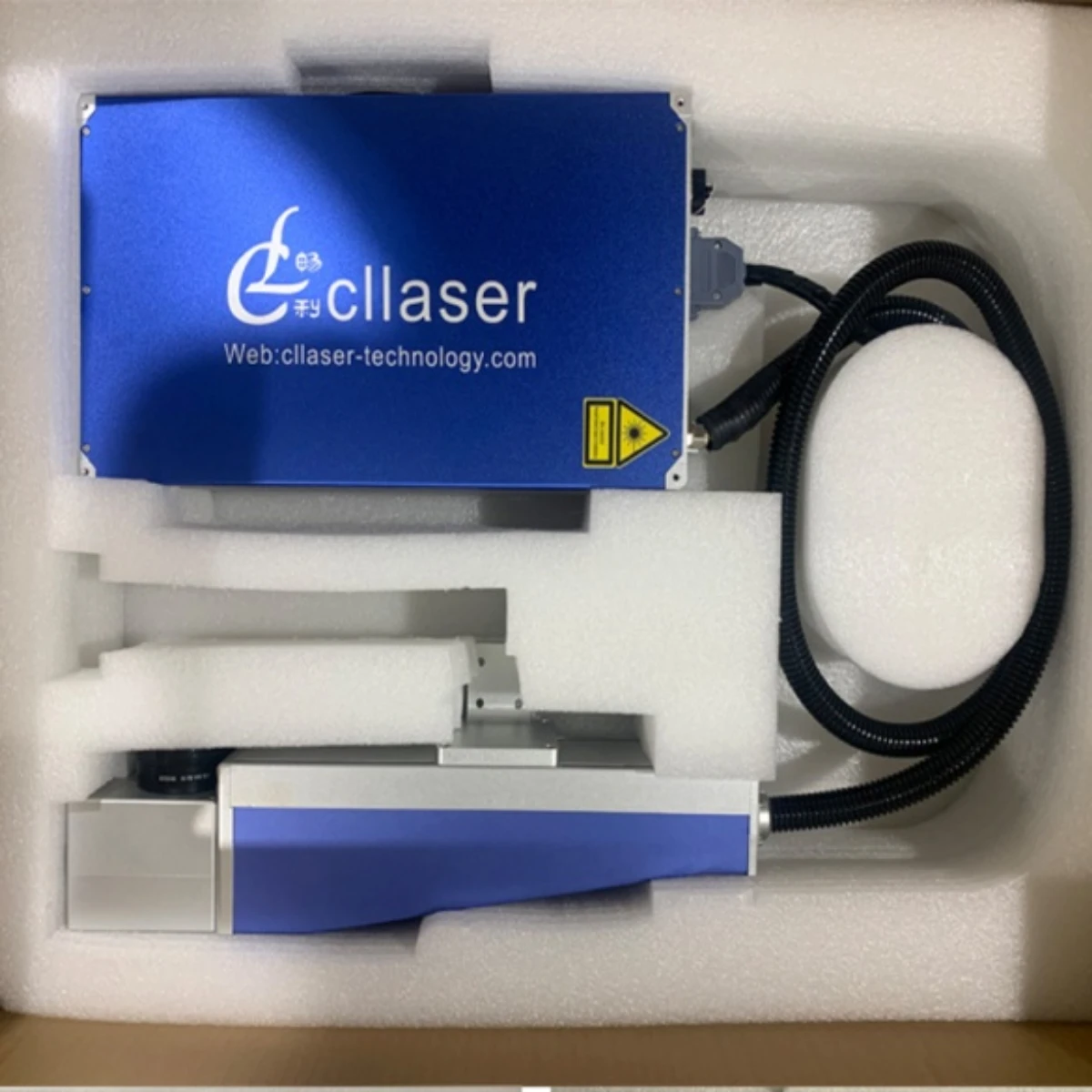

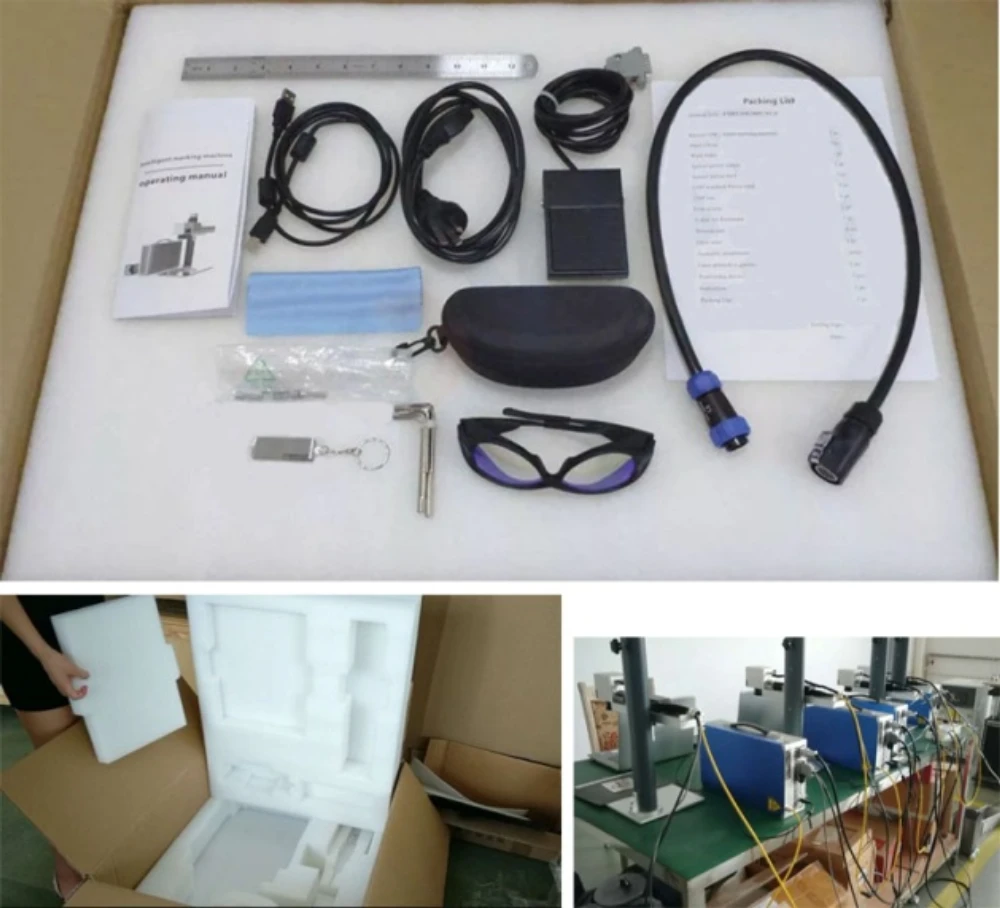

Intelligent optical fiber Raycus laser marking machine, power 20w, carton packaging weight 28 kg, can be delivered by express. , Lightweight models and low transportation costs have become the first choice for customers. There is marking software in the U disk, the operation is simple, and the installation operation video is provided.
Description
- 3 Years Warranty !
- Delivery To Door within 7 days after payment
- Raycus brand laser, 100,000 hours of use without consumables
- Double red light positioning, more convenient to use
- Control system use famous Taiwan“MW” power supply with stable performance.professional technology and long lifetime
- Alumina protective shell,beautiful appearance and wear-resistant.The machine internal structure is reasonable and convenient for maintenance.
|
Product parameter |
|
|
Model |
CL-20F |
|
Laser Power |
20w/30w |
|
Working area |
110x110mm(Standard)150mmx150mm |
|
Wavelength |
1064nm |
|
Marking speed |
7000mm/s-12000mm/s |
|
Engraving depth |
≤1.2mm Depending on the material is adjustable |
|
Minimum line width |
0.01mm |
|
Minimum character |
0.5mm |
|
Cooling system |
Air cooling/Built-in |
|
Indicate light |
Double red light |
|
Rotary table |
Optional |
|
Column lift range |
140-370mm(The platform is to the end of the lens) |
|
Software support format |
Jpg Png Dxf Plt(Best fit) |
|
Power Requirement |
≤400w |
|
Power Input |
220V / 50HZ / single phase or 110V / 60HZ / single phase |
|
Machine Weight |
20kg |
|
Packing Size |
75*57*34cm |
