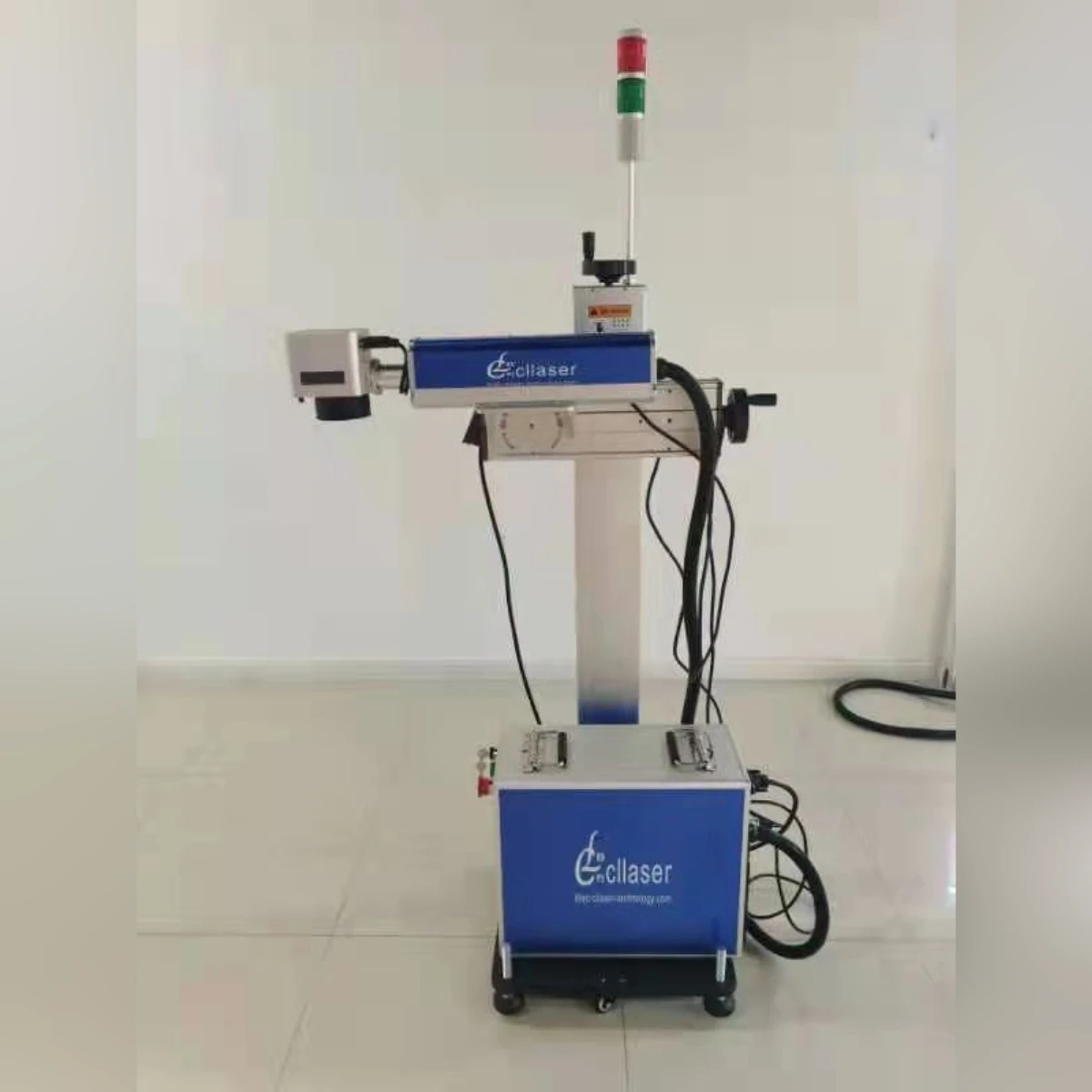

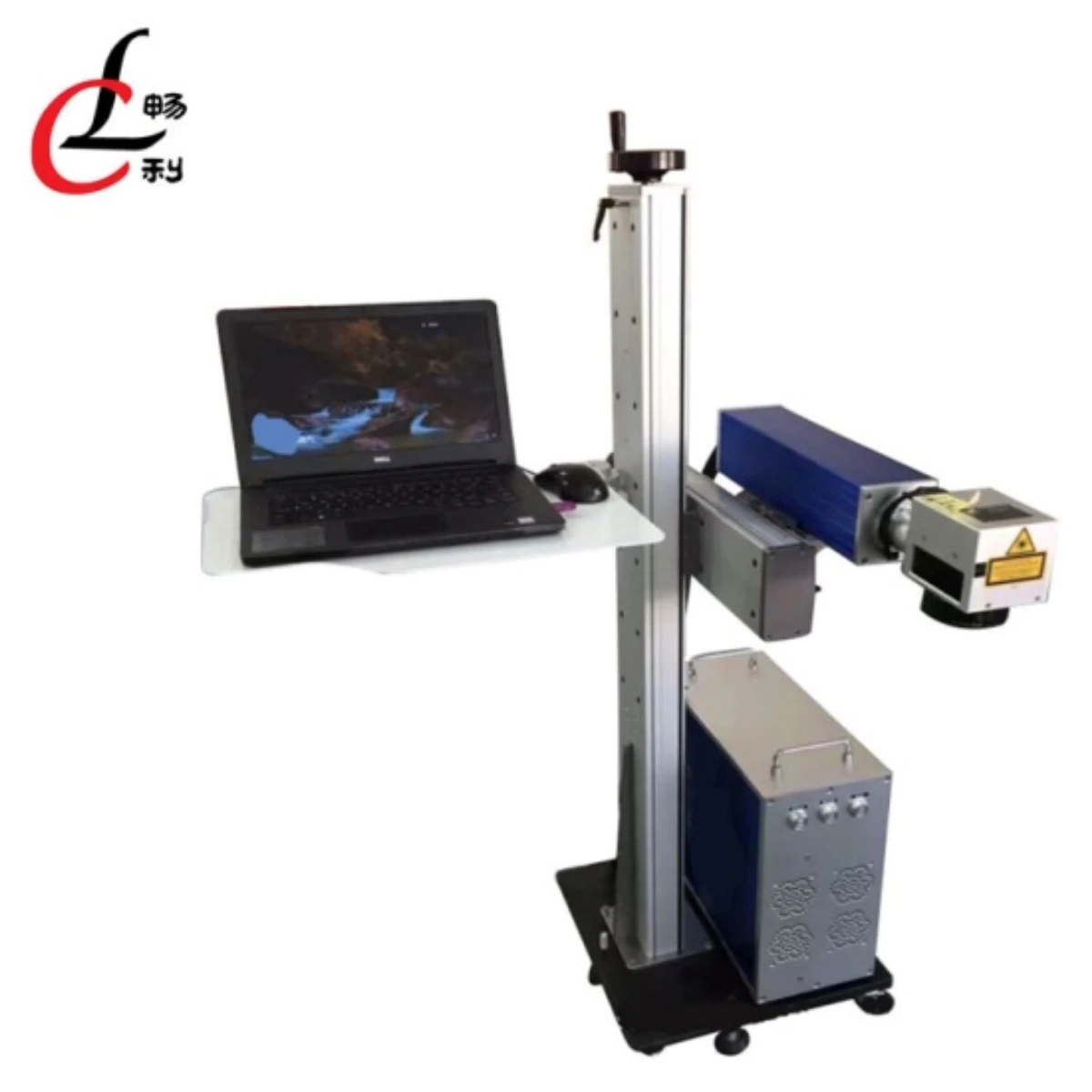

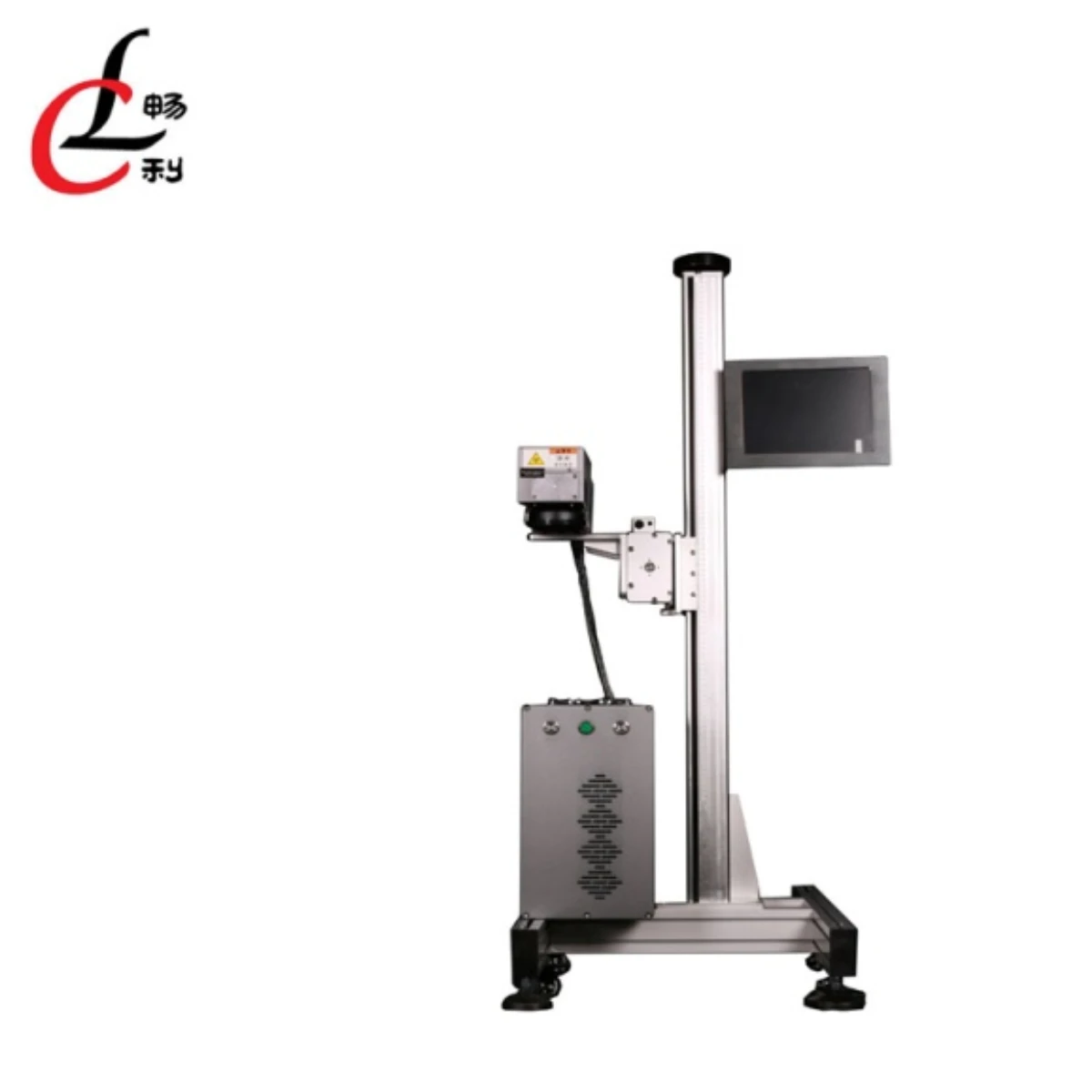

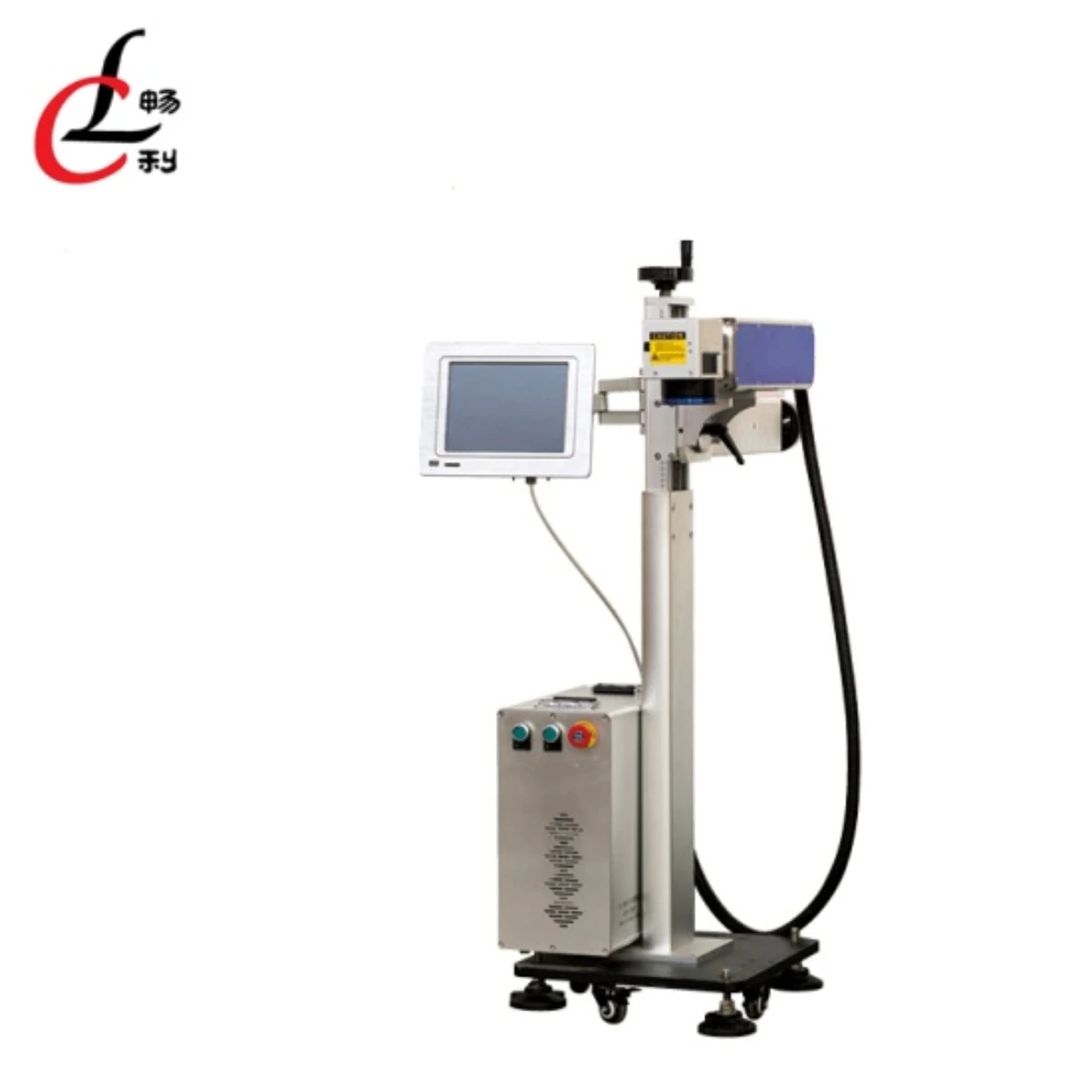

Online Flying fiber laser marking machine

|

Flying fiber laser marking machine, high-speed galvanometer scanning system, stable output power, good optical mode, fast marking speed, simple operation, wide application range, especially suitable for date of food, beverage, medicine, cosmetics, cable, PE pipe Online marking in the automatic assembly line industry of barcodes or barcodes.


Description

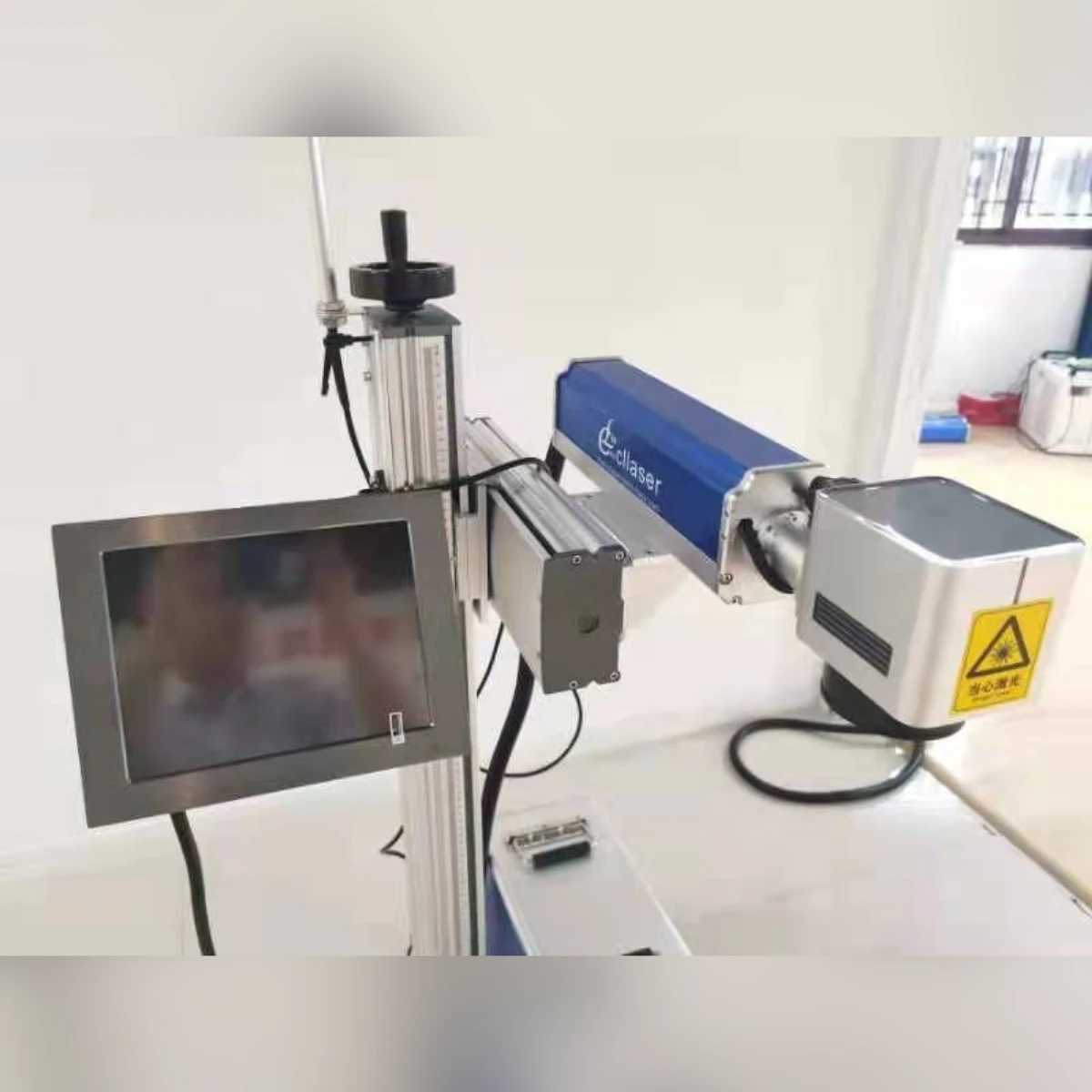

  1. come with pad control system, aluminum alloy frame, high resolution, clear display and fast processing speed

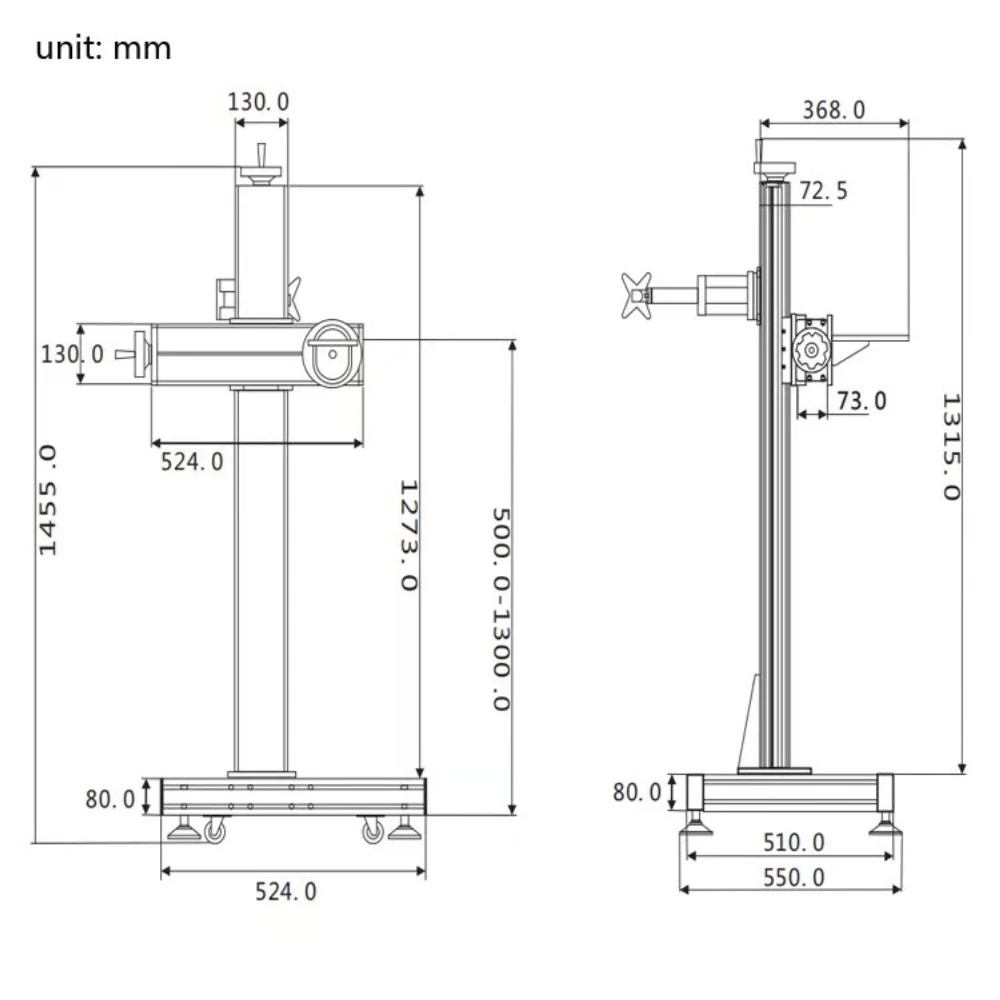

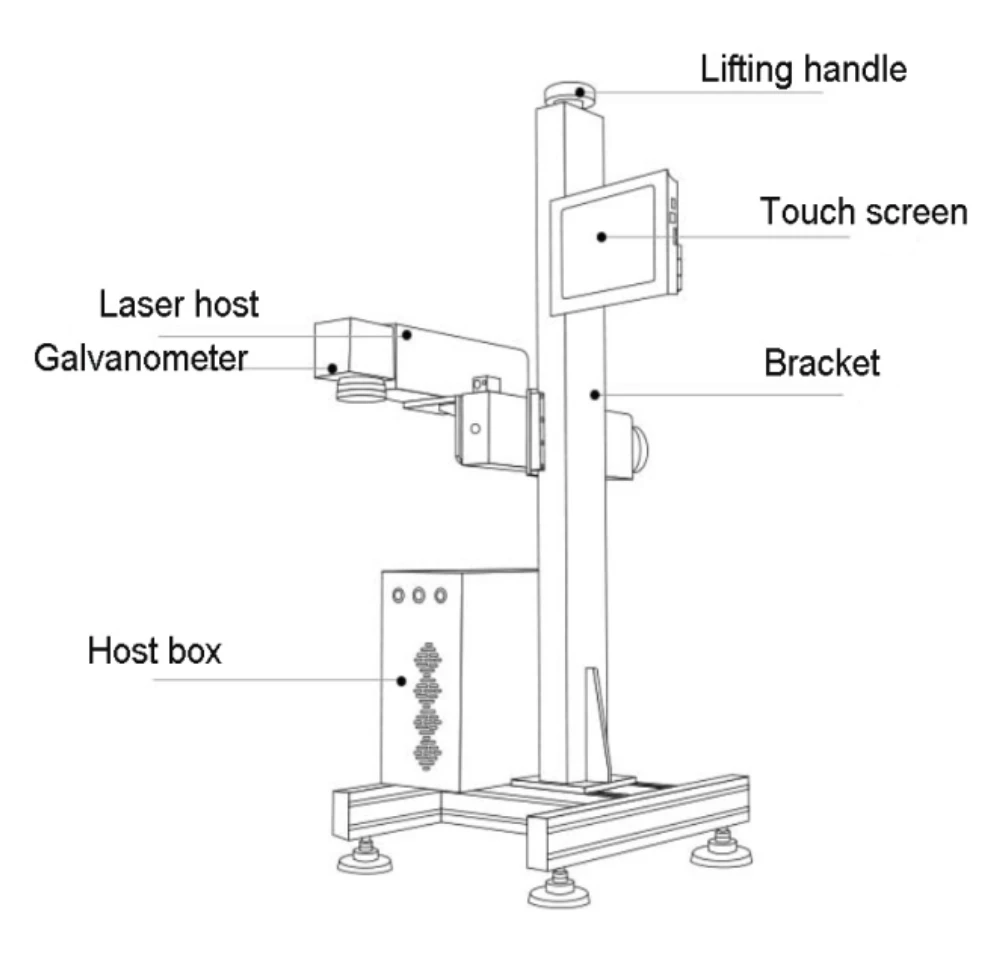

  2. The laser bracket adopts precision alloy and imported precision linear device, which can adjust the angle of the laser head by 180 degrees, the adjustable range of front and rear is 250mm, and the adjustable range is 1200mm up and down. The flexible table has multiple screw holes for easy custom installation.
  3. Using Omron encoder, the moving speed of the working platform can be transmitted in real time, and the laser marking software can handle the marking according to different moving speeds.
  4. Optional optical fiber, CO2, UV, RF and other models and automatic assembly line workbenches according to different needs of customers
  5. The operation of the whole machine is simple, one-button control of power-on and power-off
  6. Laser life up to 100,000 hours

Technical Parameters

Laser source

IPG Raycus Max JPT(option)

Laser wavelength

1064nm

Laser power

20W/30W/50W

Software

Genuine EzCad software

Modulation frequency

20 kHz -220 kHz

Scanning speed

7000 -15000 mm/s

Marking area

150mmX150mm (Optional)

Making depth

0.01 mm -0.2mm(depend on material)

Marking line width

0.01 mm -0.1mm

Minimum character

0.2mm

Working Accuracy

0.001mm

Positioning accuracy

0.01mm

Input power

<200W

Cooling

air

Weight

55KG

Power Supply

AC220V±10%,50Hz

Continuous working time

24H
