Mini fiber laser marking machine for metal price
This is new small optical fiber laser marking machine, which weighs only 20kg after packaging, saving transportation costs and can be reached through the international express door to door. It can mark metal materials and some non-metallic materials, double red light positioning, automatic filtering laser reflective protection, and is applicable to certain fields requiring higher accuracy and higher smoothness.
Description

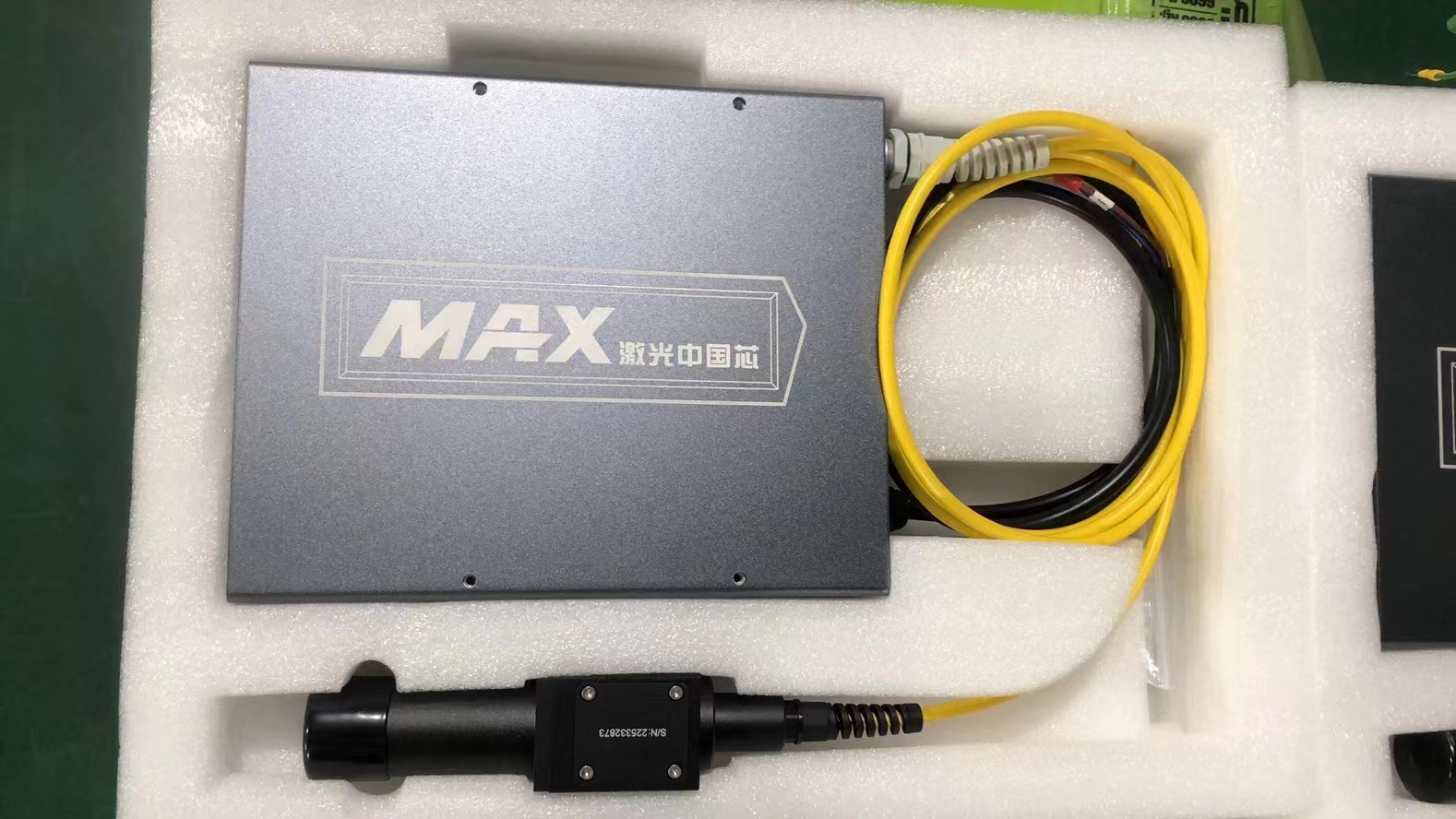

1.The machine adopt MAX brand laser source, working life over 100,000 hours.The industry’s best quality fiber opticcal manufacturer,microfiber beam 0.001mm,offer 2 years warranty.
2.The machine Galvo head use high speed galvanometer scan adopting SCANLAB technology,digital signal,high precision and Speed.High quality laser scanning system makes the marking speed up to 7000mm/s.
3.Imported high light focusing mirror.Improve laser beam utilization from edge incident to the detector, and makes the probe on the surface of the photosensitive non-uniform illumination uniformity.
4.Handy lifting system,higher precision,easy to operate and adjust the focal length.The laser focal length can be adjusted up and down according to different kinds of marking materials.
5.Control system use famous Taiwan“MW” power supply with stable performance.professional technology and long lifetime
6.Alumina working platform and imported precise beeline device.Flexibility mesa have multiple screw holes,convenient and custom installation,special fixture industry platform.
7.Laser and other control switches are used to separate power supply design,to ensure the laser is protected from electromagnetic interference from other controllers during operation,making the laser’s power output more stable and efficient.All the dual power supplies adopt domestic famous brands,which can ensure the long-term working power of the laser is stable.A 12 month warranty is provided.
8.Alumina protective shell,beautiful appearance and wear-resistant.The machine internal structure is reasonable and convenient for maintenance.
9.Optional rotary axis can be used to mark on different cylindrical,spherical objects.The stepper motor is used for digital control,and the speed can be automatically controlled by computer,which is more convenient,simple,safe and stable.
| Product parameter | |
| PN | CL-20F/30F |
| Power | 20w/30w |
| Working area | 110x110mm/150x150mm/200x200mm |
| Wavelength | 1064nm |
| Repeatability | ≤0.001mm |
| Beam quality | <1.5 |
| Marking speed | ≤7000mm/s |
| Marking the minimum characters | 0.3mm Depending on the material |
| Engraving depth | ≤0.5mm Depending on the material is adjustable |
| Marking line width | 0.05-0.01mm |
| Cooling system | Air-cooled |
| Indicate light | Red(optional double red light) |
| Column lift range | 140-370mm(The platform is to the end of the f-theta lens) |
| Software support format | Jpg Png Dxf Plt(Best fit) |
| Total consumption | ≤500w |
| Voltage | AC/110V/220V/50/60HZ |
| Net weight | 15.4kg |

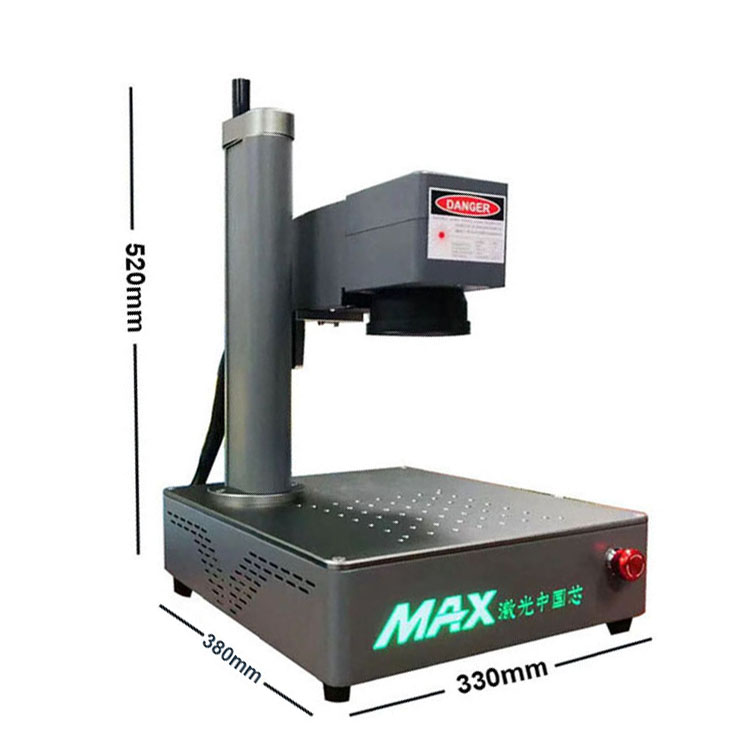

| The fuselage size | 380*330*520mm |
| Gross weight | 20kg |

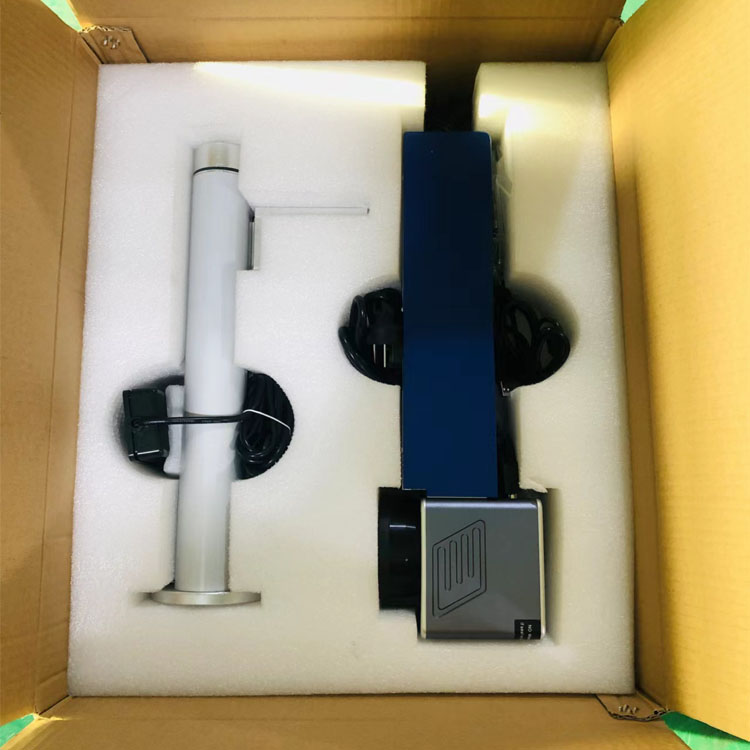

| Package size | 540*430*290mm |
