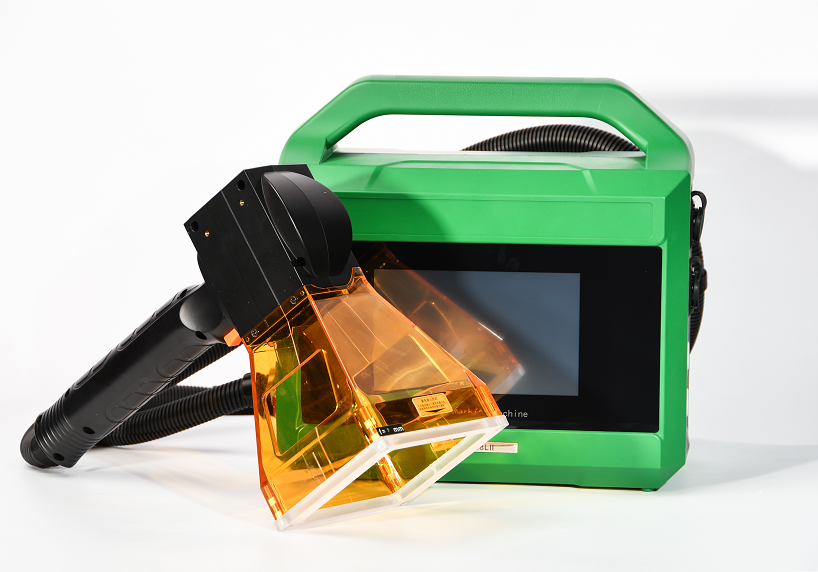

Handheld Fiber Laser Marking Machine With Battery

It can be equipped with batteries. The use time of the batteries can reach 6 hours. At the same time,wer can support the language you need. which are especially suitable for marking large-scale products that are not easy to move.

Quote

Chat

Description

Handheld laser marking machine for large products

Fiber beam delivery with integrated optical isolator
Extremely lightweight and equipped with a handle for increased portability
Compact design, easy to move
Built in touch screen dispay for easier operation
50mm x 50mm or 100mmx100mm Marking Area

Specification	818LⅡ	828LⅡ				818LBⅡ	828LBⅡ
Case material	Engineering plastics
Laser type	Fiber laser source
Output power	≥18W		≥30W			≥18W		≥30W
Laser wavelength	1064nm
Marking method	High-precision two-dimensional scanning method
Marking speed	≤7000mm/s
Master	Highly integrated motherboard, embedded 7-inch screen.
Operating system	Linux
Cooling system	Air cooling
Type of marking line	Dot matrix, vector integrated machine (both dot matrix and vector)
Reflector size	Standard size：8.5mm
Marking range	Standard：55mm×55mm, 100mmx100mm
Positioning method	Red light positioning
Lines of marking	Any number of lines within the marking range
Marking speed	650 characters/sec (the specific speed is related to product material and printing content)
Font	Simplified Chinese, Traditional Chinese, English, Korean, Russian, Arabic numerals and other standard font libraries
File format	BMP/DXF/HPGL/JPEG/PLT
Bar code / QR code	CODE39、CODE128、CODE126、EAN13、PDF417、01CODE、QR、AZTECCODE、DM、GS1DM、DOTCODE、HANXINCODE, etc.
Power	220V			charging mode
Continuous working time when fully charged	without			6-8 hours
Full charge time	without			4 hours
Max power	≤300W
Machine net weight (host + control box)	6kg				8kg
Pollution level	2
Overvoltage category	Ⅱ
Adapt temperature	0-40℃
Relative humidity	30%-85%RH (no condensation)
