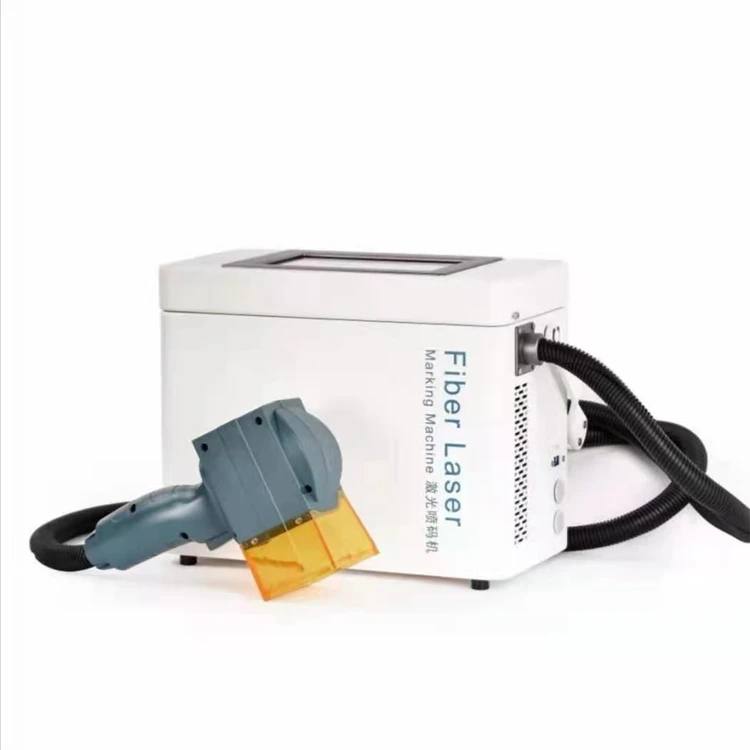

Handheld fiber laser marking machine
This handheld model is an upgrade of the 818 model. On the basis of the original model, more national languages have been added (if there is no language you need in the parameters, we can develop it for you separately) and the emergency stop function in line with EU standards has been added. It has fast speed, integrated structure, compact size, simple operation and convenient use. It is widely used in electronics, motors, pipelines, batteries, hardware, auto parts, stainless steel and other industries.
Description
- independent research and development, can be customized according to customer needs, modify, add or subtract functions
- high speed scanning galvanometer, small size, fast speed
- low power consumption, good stability,
- compact design, easy to operate
- Delivery time: within 7 working days after receiving the payment
- After-sale guarantee: 15 months warranty
- Has CE Certification
- optional battery or power supply
|
Technial Parameters |
||||
|
Specification |

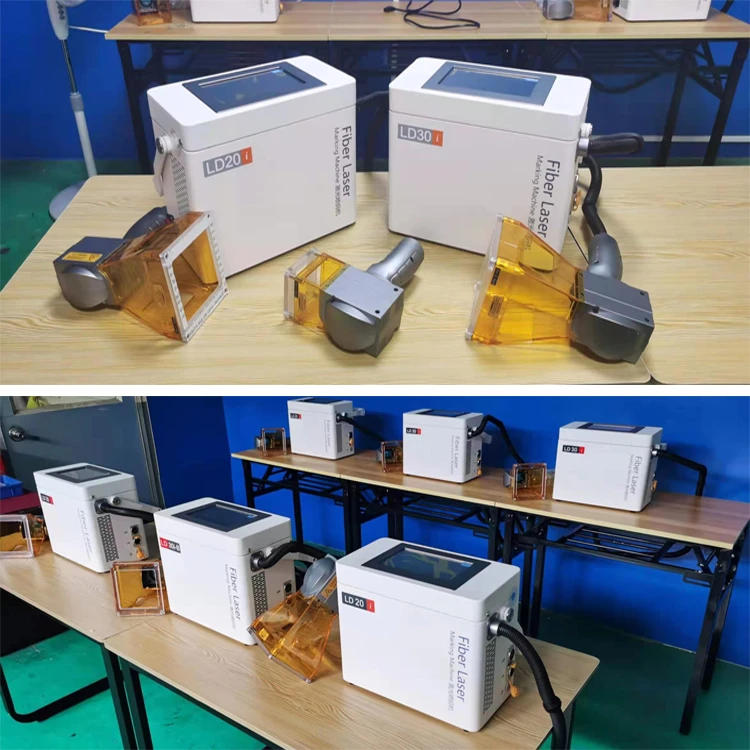

LD20iⅡ |
LD30iⅡ |
LD20i-BⅡ |
LD30i-BⅡ |
|
Case material |
Engineering plastics |
|||
|
Laser type |
Fiber laser source |
|||
|
Output power |
≥20W |
≥30W |
≥20W |
≥30W |
|
Laser wavelength |
1064nm |
|||
|
Maximum pulse energy |
0.8mj |
|||
|
Marking method |
High-precision two-dimensional scanning method |
|||
|
Marking speed |
≤7000mm/s |
|||
|
Master |
Highly integrated motherboard, embedded 7-inch screen, Linux system operation |
|||
|
Cooling system |
Room temperature air cooling/copper plate cooling |
|||
|
Type of marking line |
Dot matrix, vector integrated machine (both dot matrix and vector) |
|||
|
Reflector size |
Standard size：8.5mm |
|||
|
Marking range |
Standard：55mm×55mm, 100mmx100mm |
|||
|
Positioning method |
Red light positioning |
|||
|
Lines of marking |
Any number of lines within the marking range |
|||
|
Marking speed |
650 characters/sec (the specific speed is related to product material and printing content) |
|||
|
Font |
Simplified Chinese, Traditional Chinese, English, Korean, Russian, Arabic numerals and other standard font libraries |
|||
|
File format |
BMP/DXF/HPGL/JPEG/PLT |
|||
|
Bar code / QR code |
CODE39、CODE128、CODE126、EAN13、PDF417、01CODE、QR、AZTECODE、DM、GS1DM、DOTCODE、HANXINCODE, etc. |
|||
|
Power |
110V/220V |
charging mode |
||
|
Max power |
≤200W |
≤250W |
≤200W |
≤250W |
|
Continuous working time when fully charged |
without |
Ambient temperature 22℃ measured |
5.5hours |
|
|
Fully charged time |
without |
4 hours |
||
|
Machine net weight (host + control box) |
9.8kg |
9kg |
||
|
Pollution level |
2 |
|||
|
Overvoltage category |
Ⅱ |
|||
|
Adapt temperature |
0-40℃ |
|||
|
Relative humidity |
30%-85%RH (no condensation) |
|||
