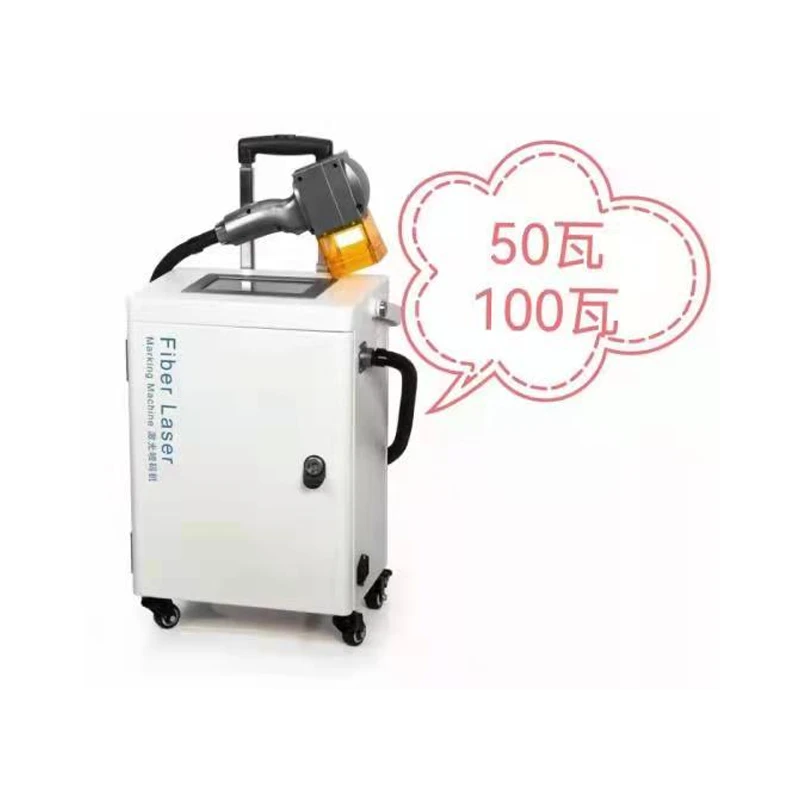

Handheld fiber laser marking machine
This handheld is developed according to the usage habits of specific customers and the demand for high-power use, which is simpler, more friendly and convenient to use. It uses programmable devices and high speed precision integrated circuit, machining positioning accurate, fast speed. The whole system adopts all-optical coupling isolation technology, low power consumption, good stability, strong performance, can be easily marked in a variety of working conditions, widely used in electronics, food, aluminum, motor, pipeline, hardware, auto parts, stainless steel products and other industries. The current model has 50W and 100W power!
Description
- independent research and development, can be customized according to customer needs, modify, add or subtract functions
- high speed scanning galvanometer, small size, fast speed
- low power consumption, good stability,
- compact design, easy to operate
|
Product parameters |
||
|
Machine Model |
LD50i |
LD100i |
|
Machine material |
Engineering Plastics/Sheet Metal Spraying |
|
|
Laser type |
Fiber Laser Generator |
|
|
Laser power |
≥50W |
≥100W |
|
Laser wavelength |
1064nm |
|
|
Print method |
High-precision two-dimensional scanning method |
|
|
Marking speed |
≤7000mm/s |
|
|
Main control |
Highly integrated motherboard, embedded 7-inch screen |
|
|
Operating system |
Linux |
|
|
Cooling system |
Room temperature air cooling |
|
|
Marking line type |
Dot matrix and vector all-in-one machine (both dot matrix and vector can be played) |
|
|
Reflector size |
Standard: 8.5mm |
|
|
Marking range |
50mm×50mm(standard)\100mm×100mm(optional) |
|
|
Targeting |
Red light positioning |
|
|
Number of lines of lettering |
Any line within the marking range |
|
|
Print speed |
650 characters/second (the specific speed is related to the product material and printing content |
|
|
Typeface |
Chinese, English, Korean, German, Russian, Arabic numerals and other standard fonts |
|
|
File format |
BMP/DXF/HPGL/JPEG/PLT |
|
|
Barcode/QR code |
CODE39、CODE128、CODE126、EAN13、PDF417、01CODE、QR、AZTECCODE、DM、GS1DM、 |
|
|
Voltage |
220V/110V |
|
|
Power consumption |
≤400W |
≤500W |
|
Machine net weight |
25kg |
|
|
Overvoltage category |
Ⅱ |
|
|
Adapt to temperature |
0-40℃ |
|
|
Environment humidity |
30%-85%RH (no condensation) |
|
