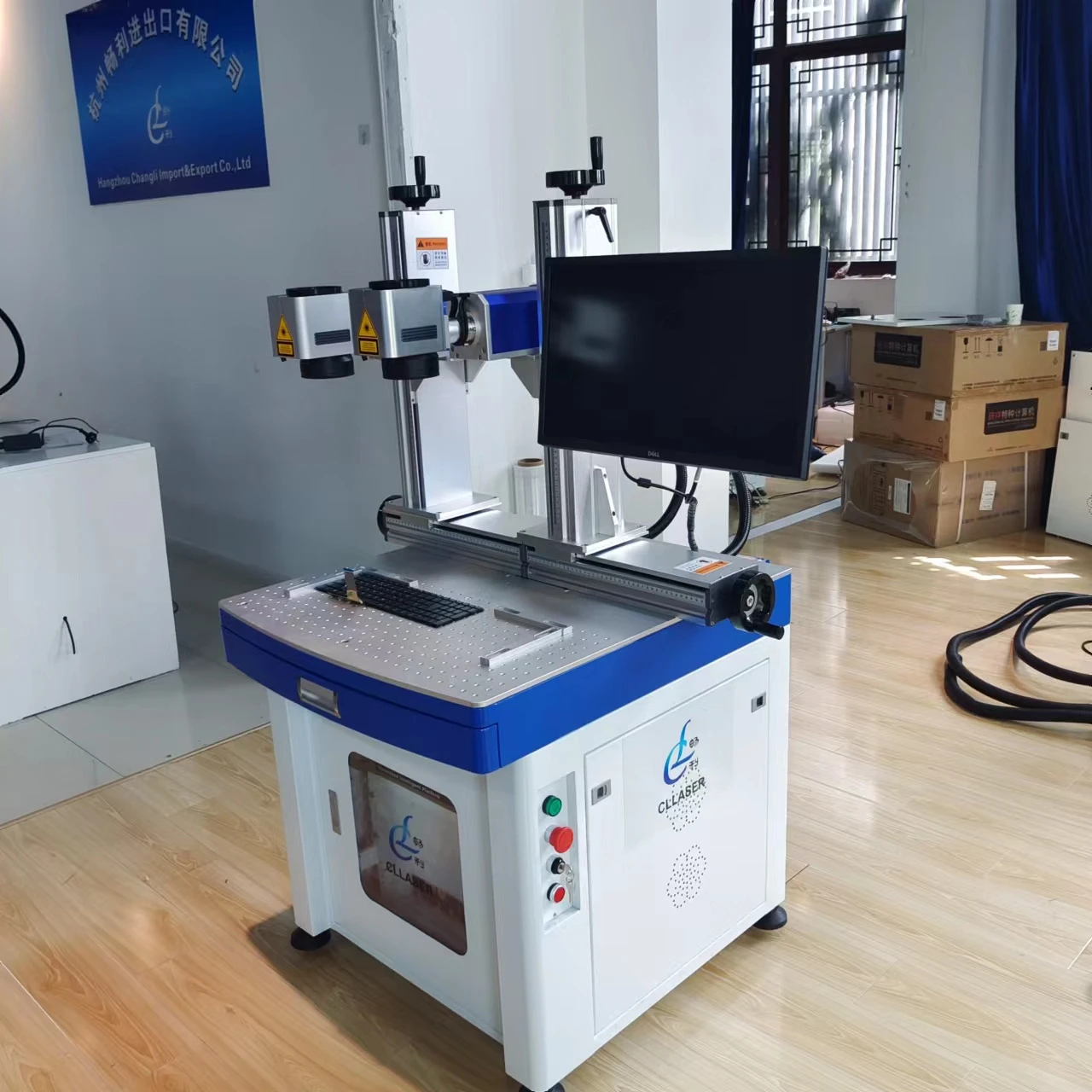

End Pump Laser marking machine
The full name is:semiconductor, end face, pump laser marking machine. The fixed laser pumped by semiconductor laser is used as the pump source, and the laser crystal is injected from the end face after fiber coupling, so that the pump beam enters the gain medium and overlaps the cavity mode space to the maximum extent, so as to obtain the laser output with high power and high beam quality. Because OF its unique new cavity technology to reduce the thermal lens effect, especially suitable for plastic keys, transparent keyboard, key refurbishment、watches, glasses, auto parts and other high precision products logo engraving.
Description
- high light conversion efficiency, small output laser spot
- marking line is thinner, suitable for fine graphic marking
- stable performance, air cooling
- small size, low power consumption
|
Technical Parameters |
|
|
Laser wavelength: |
1064nm |
|
Laser power: |
End Pump 10W 20W Option |
|
Scanning galvanometer |
Digital galvanometers |
|
Modulation frequency: |
20 kHz -180 kHz |
|
Field lens |
F=254mm |
|
Scanning speed: |
9000-12000mm/s |
|
Computer |
Advantech 610 |
|
Marking area: |
115mmX115mm |
|
Monitor |
Dell /19inches |
|
Making depth: |
0.01 mm -0.2mm（depend on material） |
|
Red light |
650N |
|
Laser lifting bracket |
500mm up and down |
|
Marking software |
EZCAD |
|
Marking line width: |
0.01 mm -0.1mm |
|
Light path cavity |
Maohexin |
|
Minimum character: |
0.2mm |
|
Positioning accuracy: |
0.01mm |
|
Input power: |
＜200W |
|
Cooling: |
Air Cooling |
|
Power Supply: |
AC220V±10%，50Hz(AC110V Optional) |
|
Continuous working time: |
24H |
|
Spare Parts |
Laser power supply/filter/Metal plate/safety goggles |
