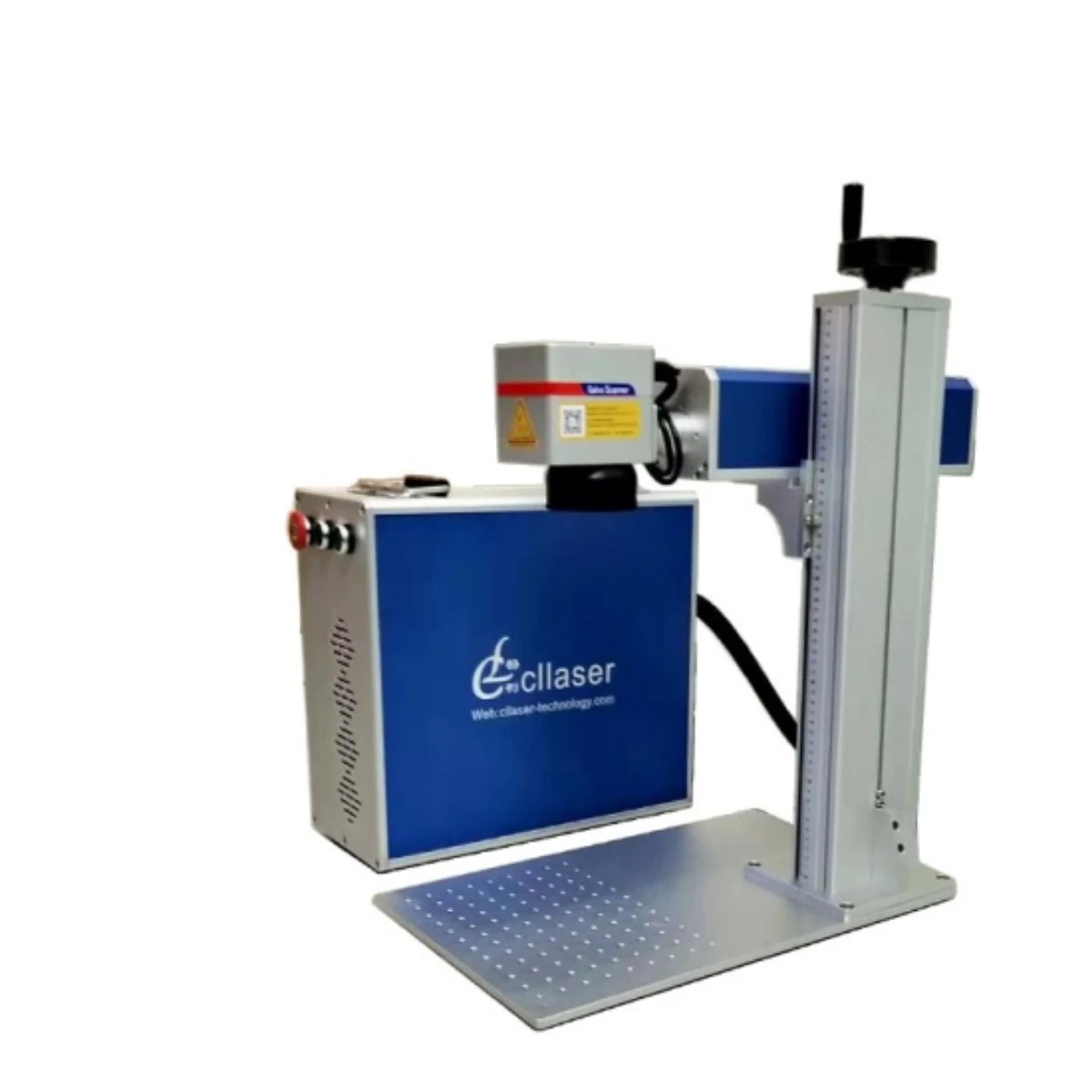

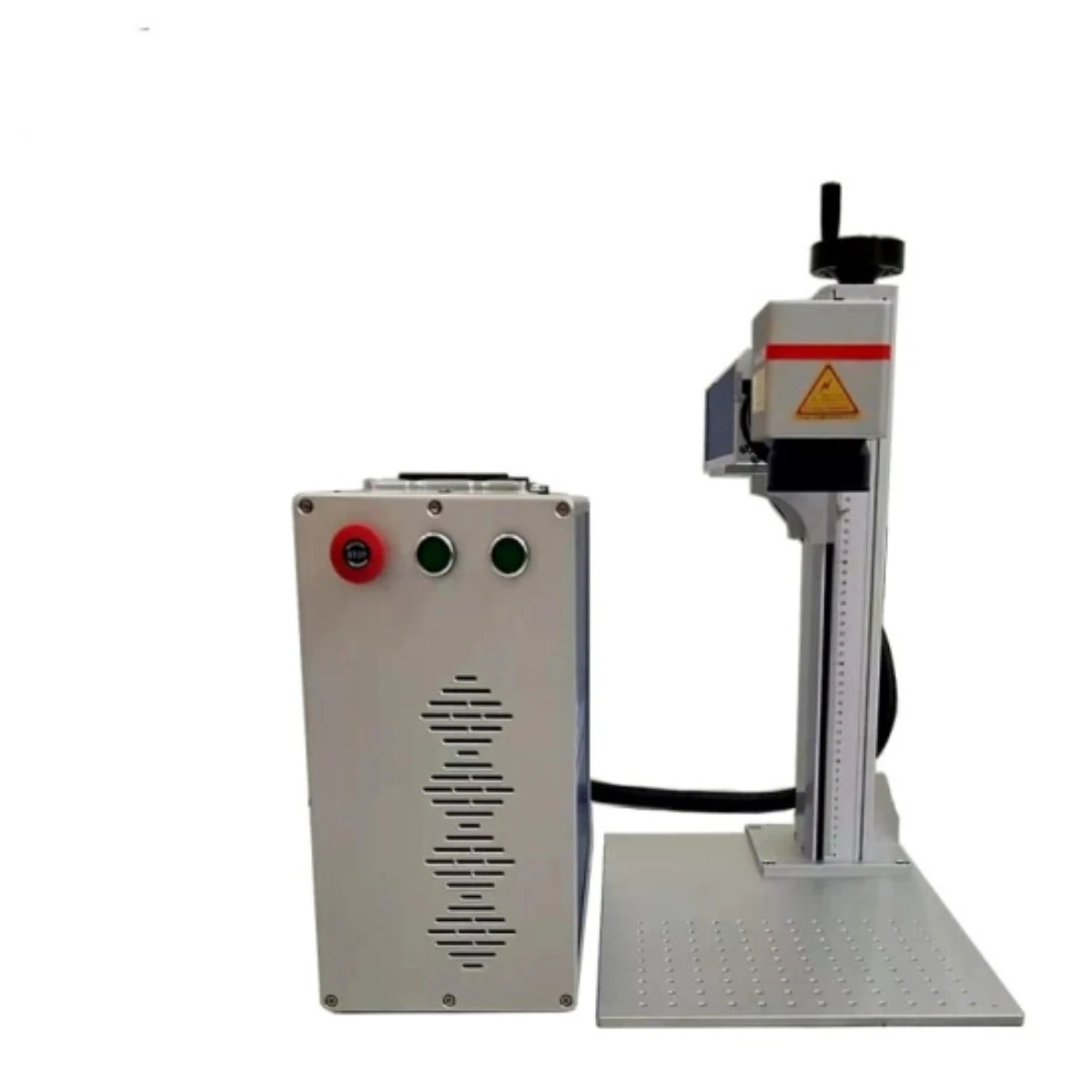

Desktop split fiber laser marking machine
Desktop split portable optical fiber laser marking machine, using RAYCUS laser source, double red light positioning, power 20W/30W optional, working area 110-300mm optional. The free USB flash disk contains installation software, so customers can use their own computers. Fully functional, small and portable, with favorable price, it is very suitable for customized studios
Description
- The laser beam quality is good, the laser wavelength is 1064nm,Air Cooling
- The service life of the laser is about 100,000 hours maintenance-free
- The operating table is made of high-quality aluminum plate and comes with fixing bars。
- Portable, lightweight and takes up no space
- 3 Years Warranty !
|
Product parameter |
|
|
Laser power |
20W 30W |
|
Laser wavelength |
1064nm |
|
Laser Source |
Raycus |
|
Beam quality |
M2<2 |
|
Control software |
Ezcad |
|
Marking depth |
≤0.3mm |
|
Cutting depth |
≤1mm(30W 50W 100W mark 1-3mins repeatedly then can cut) |
|
Marking speed |
≤7000mm/s |
|
Minimum line width |
0.01mm |
|
Minimum character |
0.5mm |
|
Marking Size |
110 * 110mm ( 200mm 300mm optional ) |
|
Electric power |
<500W |
|
Working voltage |
110/220V ± 10%, 50/60HZ |
|
Cooling way |
Air cooling |
|
Ambient operating temperature |
5° C – 40 ° C |
|
Supported graphic formats |
AI，BMP，DST，DWG，DXF，DXP，LAS，PLT |
|
System Operation |
Windows XP / W7–32/64bits |
|
Life-span of Fiber Laser Module |
100 000hours |
|
Votage |
110V/220V Optional |
|
Communication Interface |
USB |
|
Machine weight |
60kg |
|

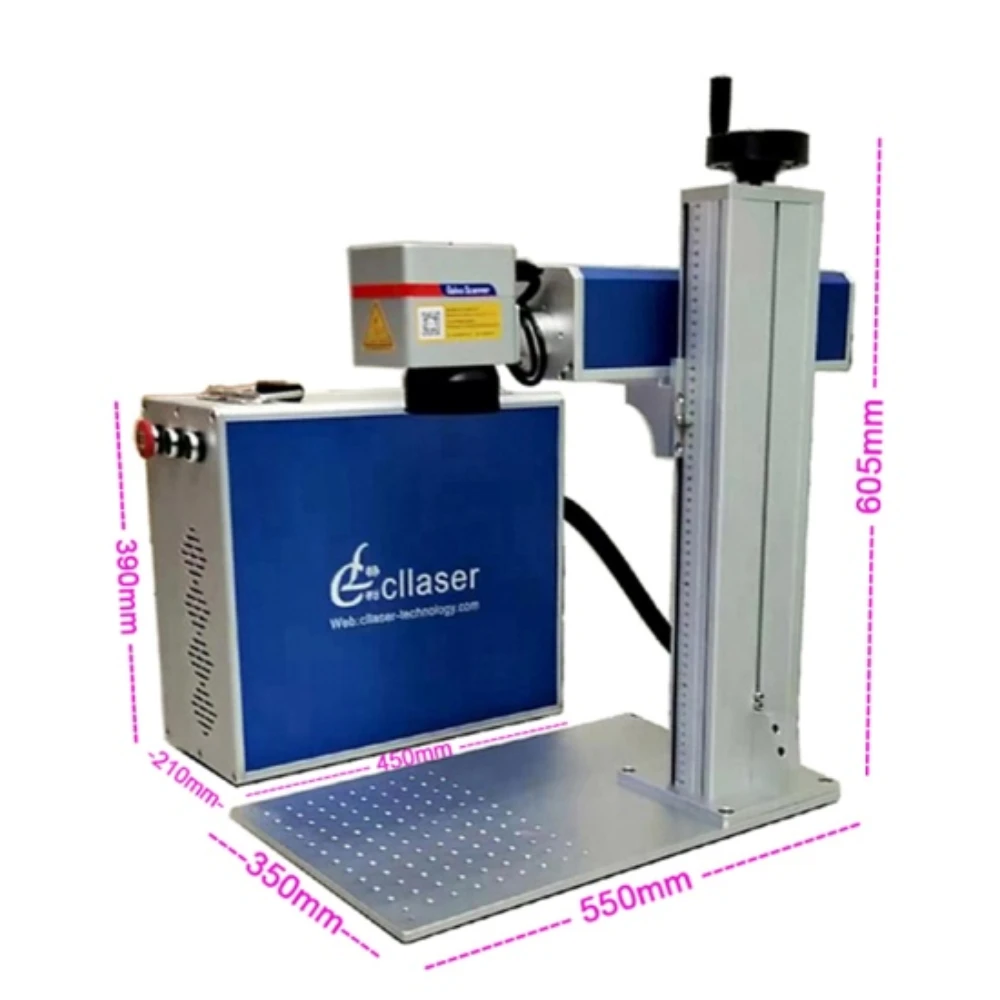

Machine size |
56L * 55W * 60.5H (cm) |
|

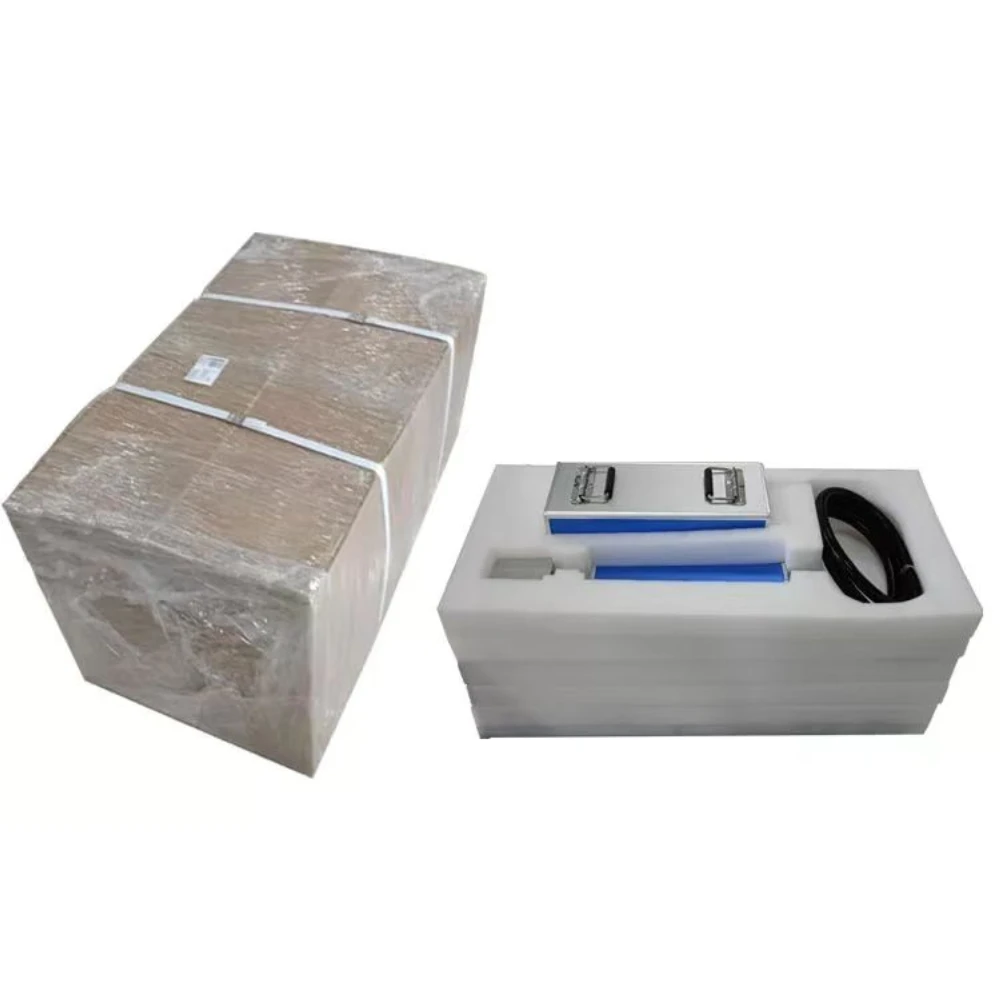

Packing |
Plywood box |
|
Package Size |
85L * 45W * 81H (cm) |
