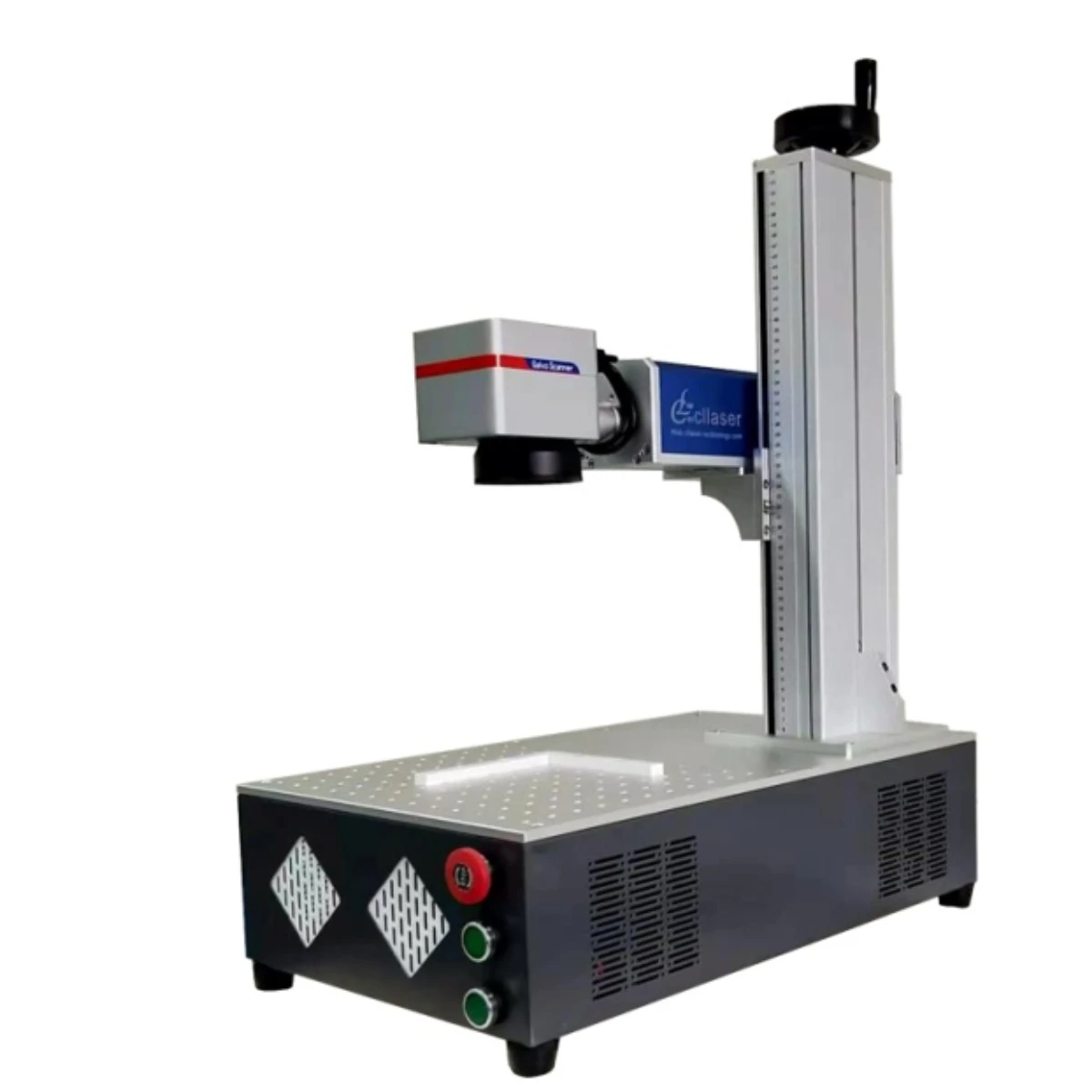

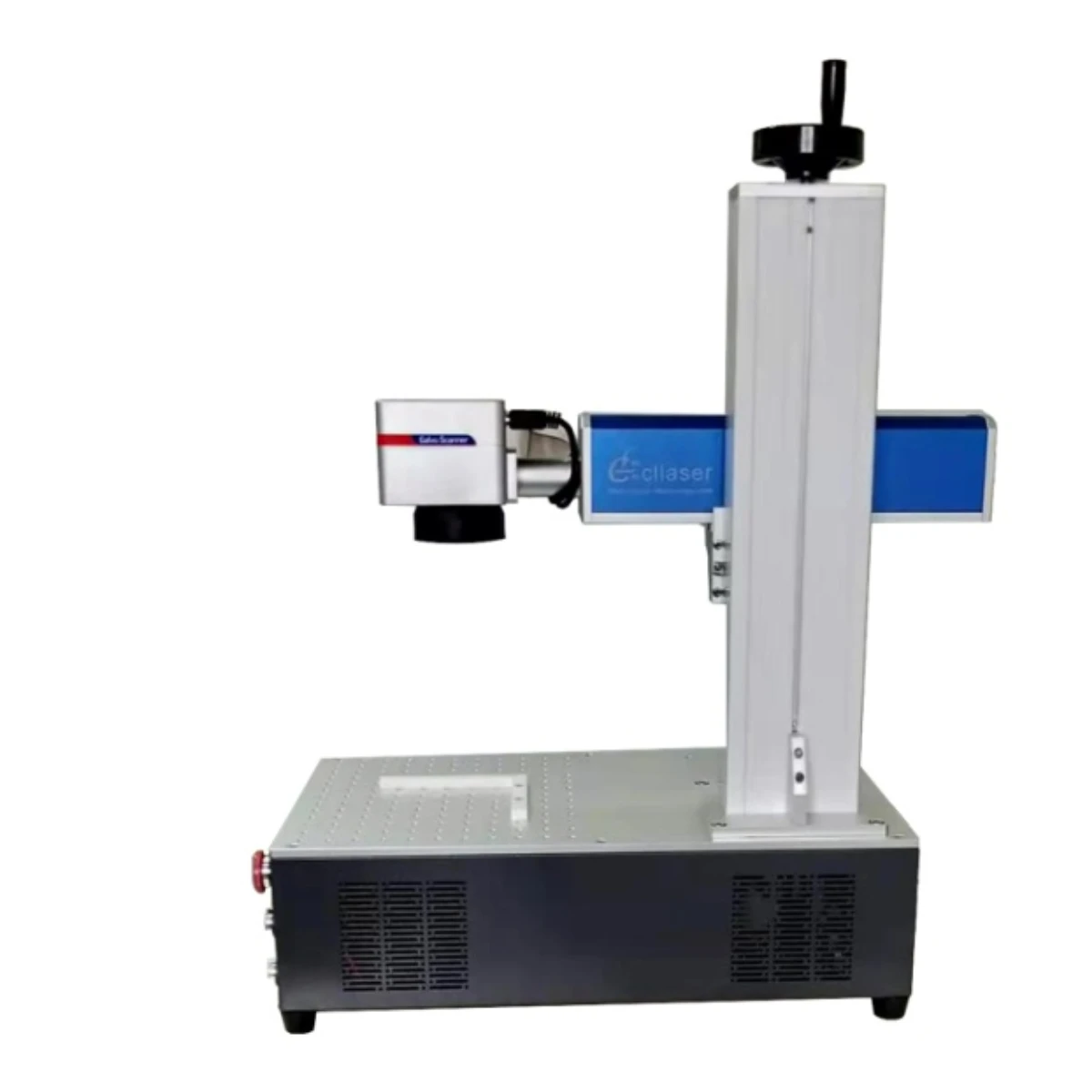

Desktop Integration fiber laser marking machine

|

Desktop Integrate portable fiber laser marking machine, using Raycus laser, optional power 20W/30W, optional working area 110-300mm, all-aluminum plate work surface, the provided U disk has installation software, customers can use their own computers . Full-featured, compact and portable, the whole machine is 32KG, and the price is favorable, which is very suitable for customized studios.


Description

  1. The laser beam quality is good, the laser wavelength is 1064nm,Air Cooling
  2. The service life of the laser is about 100,000 hours maintenance-free
  3. The operating table is made of high-quality aluminum plate and comes with fixing bars。
  4. Portable, lightweight and takes up no space, easy to transport
  5. 3 Years Warranty !

Product parameter

Laser power

20W 30W

Laser wavelength

1064nm

Control software

EZCAD

Marking depth

≤0.3mm

Marking speed

7000mm/s-12000MM/S

Minimum line width

0.01mm

Minimum character

0.05mm

Marking Size

110 * 110mm ( 200mm 300mm optional )

Electric power

<500W

Working voltage

110/220V Optional

Cooling way

Air cooling

Ambient operating temperature

5° C – 40 ° C

Supported graphic formats

AI,BMP,DST,DWG,DXF,DXP,LAS,PLT

Life-span of Fiber Laser Module

100 000hours

Communication Interface

USB

Machine weight

32KG

Machine size

56L * 55W * 60.5H (cm)

Package Size

75* 45W * 40H (cm)

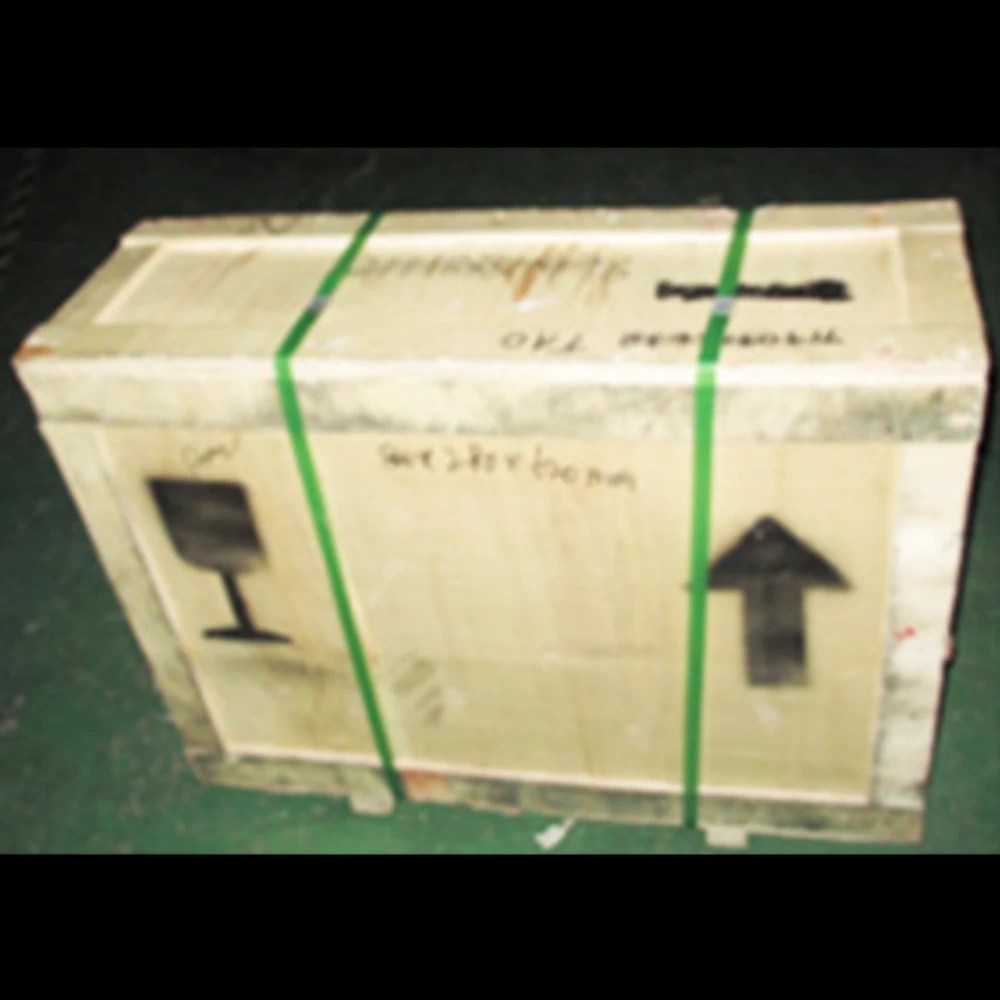

Packing

Plywood box
