Co2 laser marking machine
The CO2 laser marking machine uses CO2 gas as the working medium, the laser wavelength is 10.64um, and the service life is as long as 20000-40000 hours. Mainly used for engraving and cutting bamboo, wood, acrylic, paper packaging, plastic products, label paper, leather cloth, glass ceramics, resin plastics, PCB boards, etc
Description
- The marking speed is fast, the lines are delicate, and the marking is clear and permanent
- Graphics, text and serial numbers can be edited by software
- No consumables, low cost and power saving
- Mark environmental protection and comply with ROHS standard

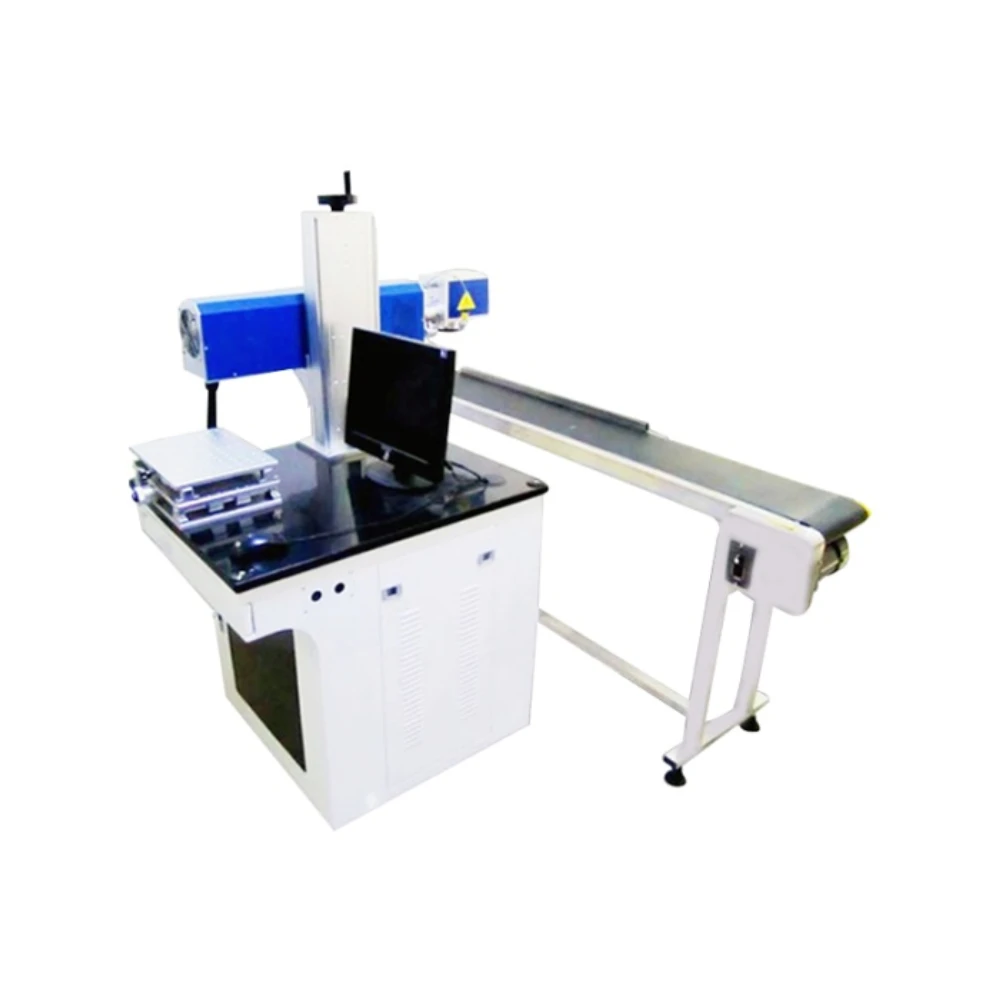

- Can customize flight, assembly line and dynamic styles according to product requirements
Technical Parameters |
|
Model |
CL-CO2 |
Power |
20W/30W/50W/60W/100W |
Cooling Mode |
Air Cooling |
Marking Speed |
8000mm/s |
Laser Source |
Synrad/Coherent/Davi/Jingrui |
Minumum Line Width |
0.015mm |
Pulse Frequency |
1-25Khz/1-100Khz |
Minumum Character |
0.2mm |
Field Lens Brands |
Singapore Wavelength |
Laser Wavelength |
10.64μm |
Marking Area |
110*110mm / 140*140mm/ 175*175mm/210*210mm/300*300mm |
Environment |
5℃-45℃, clean or dust-free |
Control Card |
JCZ Brand EZCAD |
Power Supply |
AC220V / 110V plug |
Operating System |
Win XP /7/ 8/ 10 (32 bit, 64bit) |
Warranty |
1 year |
