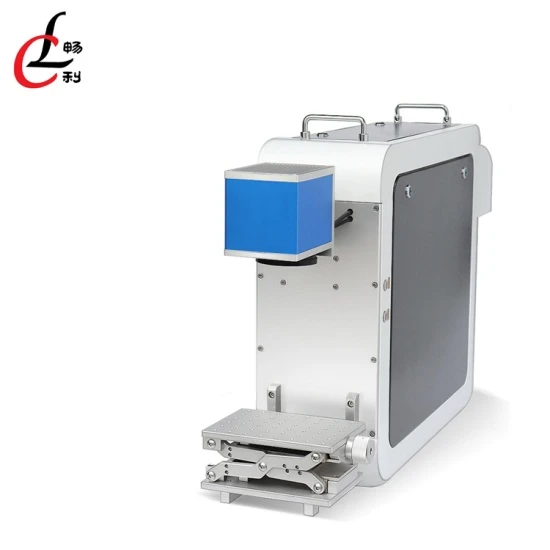

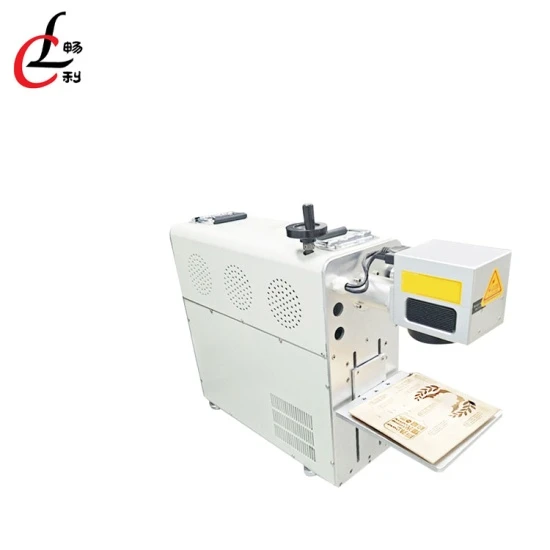

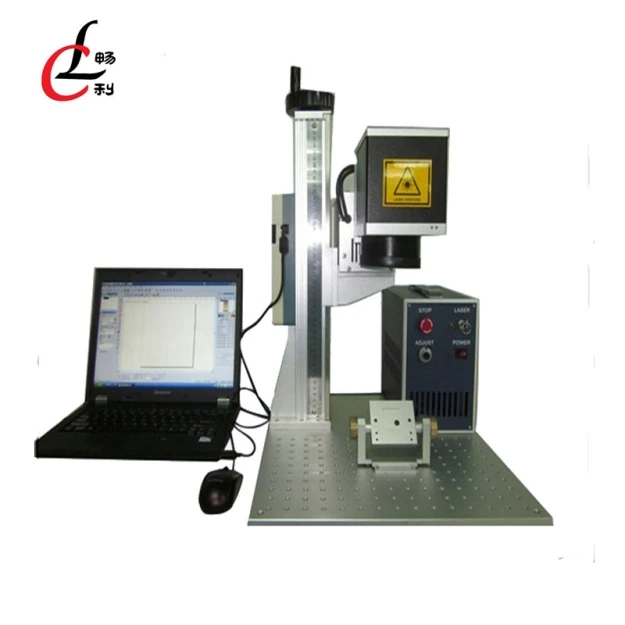

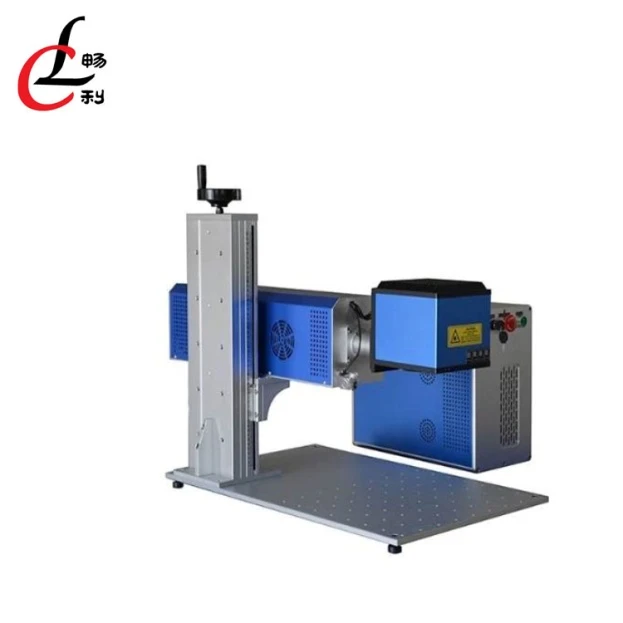

Co2 Desktop laser marking machine

This desktop type of small laser marking machine, very suitable for small customized studio, it is easy to move, occupy small space. Widely used in craft gifts, wood, clothing, greeting cards, electronic components, plastics, models and other non-metallic products

Quote

Chat

Description

40,000 hours of maintenance free, no consumables, zero maintenance, low processing cost
clear marking, fast speed, engraving depth can be controlled at will
Color pictures can be marked directly

Technical Parameters
Model	CL-CO2
Power	20W/30W（Option)
Cooling Mode	Air Cooling
Marking Speed	7000mm/s-12000mm/s
Laser Source	Synrad/Coherent/Davi/Jingrui（Option）
Minumum Line Width	0.015mm
Pulse Frequency	1-25Khz/1-100Khz
Minumum Character	0.2mm
Field Lens Brands	Singapore Wavelength
Laser Wavelength	10.64μm
Marking Area	110110mm / 140140mm/ 175*175mm
Environment	5℃-45℃, clean or dust-free
Control Card	JCZ Brand EZCAD
Power Supply	AC220V / 110V plug
Operating System	Win XP /7/ 8/ 10 (32 bit, 64bit)
Warranty	1 year
