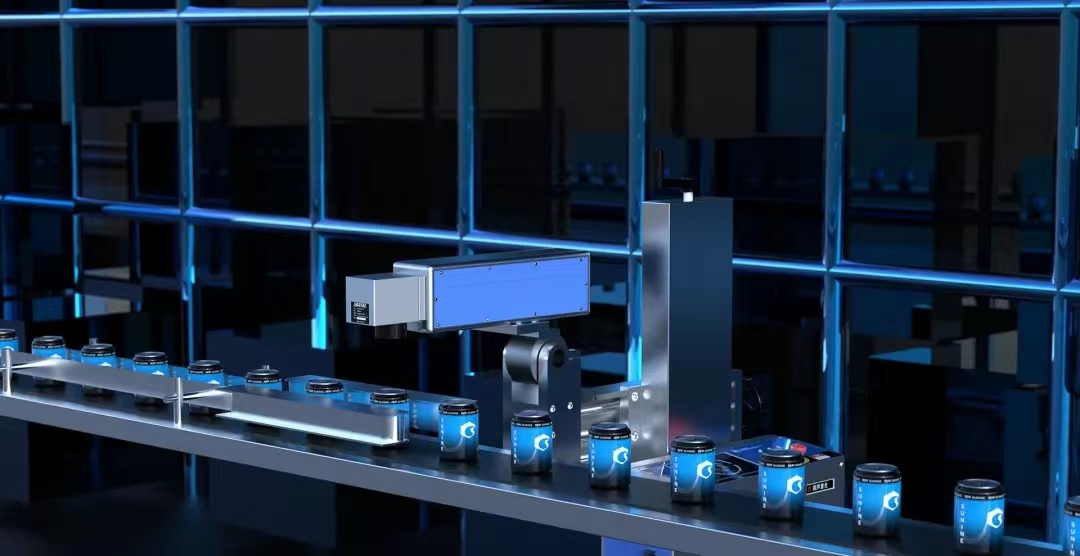

Co2 Assembly line laser marking machine

This simple flight series laser marking machine breaks the common limitations of the limited space in the workplace due to the bulky machine and large supporting facilities, and realizes smaller, lighter and more economical flying marking

Quote

Chat

Description

marking process automation, fast speed, high efficiency, anti-counterfeiting effect is significant
easy to operate, a wide range of applications, suitable for a variety of materials marking
support automatic coding, variable text, serial number, batch number, date, all kinds of bar codes and two-dimensional code marking
It can be freely combined with paging machines and conveyor belts according to the needs of customers’ production lines.
It can cooperate with the flight camera positioning system to complete the marking of the same part placed in irregular positions in a short time.

Technical Parameters
Model	CL-CO2
Power	20W/30W/50W/60W/100W(Option)
Cooling Mode	Air Cooling
Marking Speed	8000mm/s-15000mm/s
Laser Source	Synrad/Coherent/Davi/Jingrui（Option）
Minumum Line Width	0.015mm
Pulse Frequency	1-25Khz/1-100Khz
Minumum Character	0.2mm
Field Lens Brands	Singapore Wavelength
Laser Wavelength	10.64μm
Marking Area	110110mm / 140140mm/ 175175mm/210210mm/300*300mm
Environment	5℃-45℃, clean or dust-free
Control Card	JCZ Brand EZCAD
Power Supply	AC220V / 110V plug
Operating System	Win XP /7/ 8/ 10 (32 bit, 64bit)
Warranty	1 year
