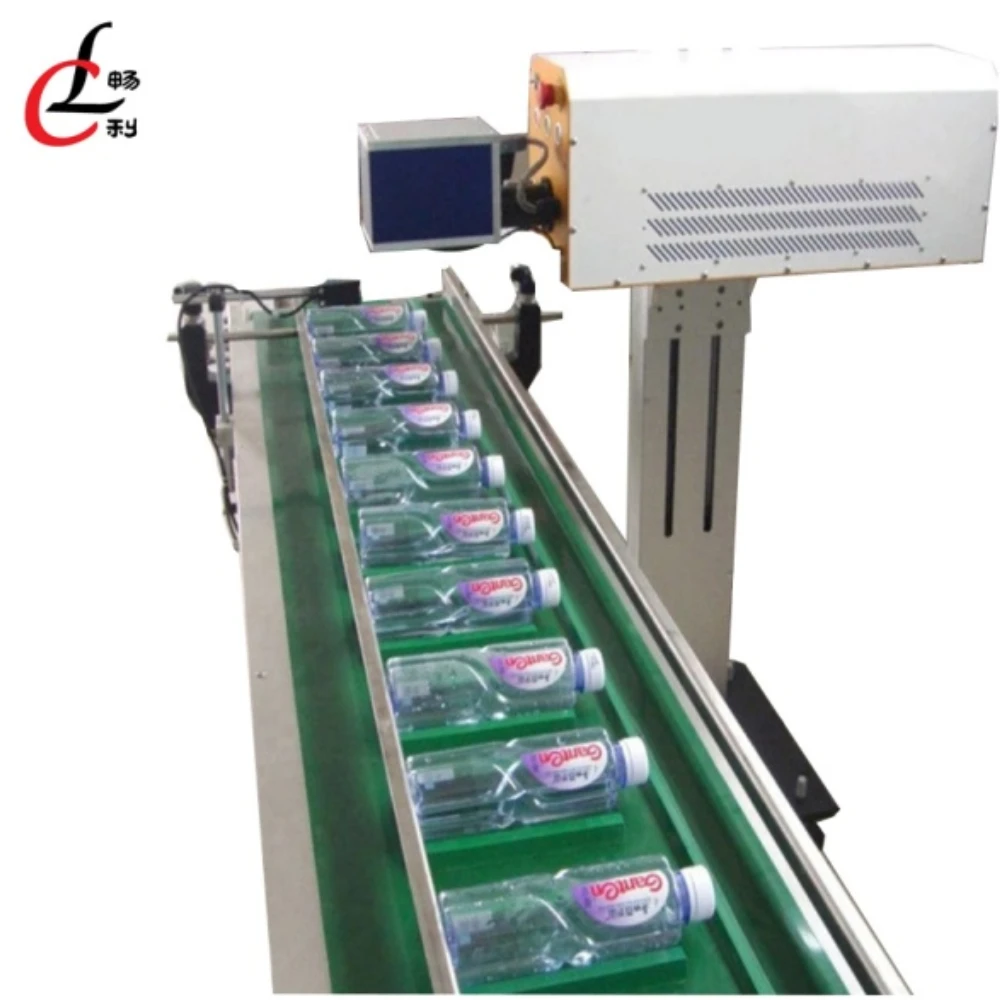

Food and drug packaging production date laser marking machine line
Description
- marking process automation, fast speed, high efficiency, anti-counterfeiting effect is significant
- easy to operate, a wide range of applications, suitable for a variety of materials marking
- support automatic coding, variable text, serial number, batch number, date, all kinds of bar codes and two-dimensional code marking
- according to customer production line needs flexible modification
|
Technical Parameters |
|
|
Model |
CL-CO2 |
|
Power |
20W/30W/50W/60W/100W(Option) |
|
Cooling Mode |
Air Cooling |
|
Marking Speed |
8000mm/s-15000mm/s |
|
Laser Source |
Synrad/Coherent/Davi/Jingrui（Option） |
|
Minumum Line Width |
0.015mm |
|
Pulse Frequency |
1-25Khz/1-100Khz |
|
Minumum Character |
0.2mm |
|
Field Lens Brands |
Singapore Wavelength |
|
Laser Wavelength |
10.64μm |
|
Marking Area |
110*110mm / 140*140mm/ 175*175mm/210*210mm/300*300mm |
|
Environment |
5℃-45℃, clean or dust-free |
|
Control Card |
JCZ Brand EZCAD |
|
Power Supply |
AC220V / 110V plug |
|
Operating System |
Win XP /7/ 8/ 10 (32 bit, 64bit) |
|
Warranty |
1 year |
