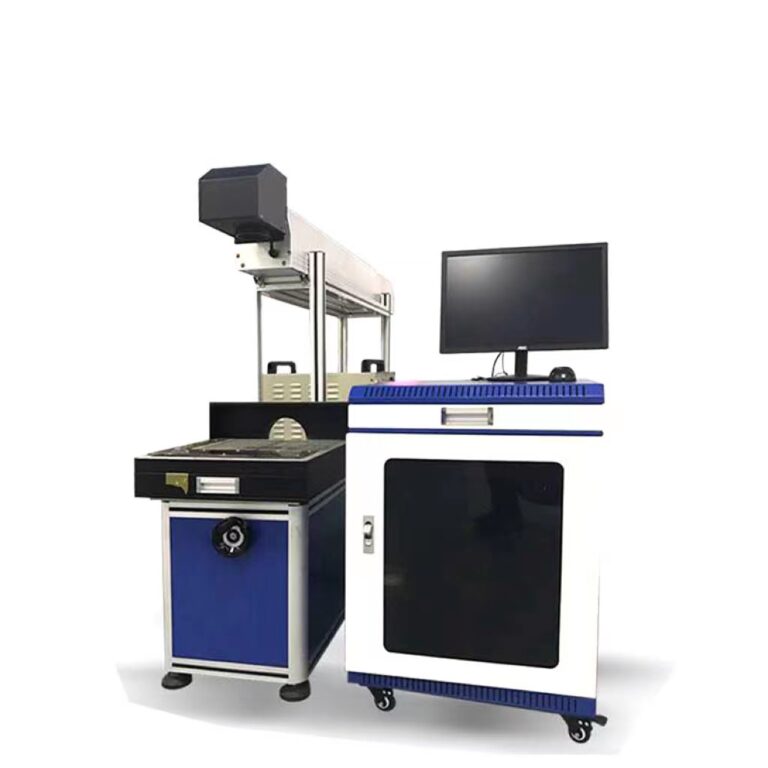

3D surface laser marking machine for electronic products
Description
|
Technical parameters |
|
|
Product name: |
3D fiber laser marking machine |
|
Laser power: |
30W |
|
Frequency: |
20KHz-80KHz |
|
Marking area: |
110*110mm(70-300mm optional) |
|
Marking color: |
black, white, colour(according to material) |
|
Output power of laser: |
10%~100% continuously to be adjusted |
|
Cooling mode: |
air cooling |
|
Communication interface: |
USB |
|
The minimum focus facula diameter: |
20μm |
|
Minimal character: |
0.15mm*0.15mm |
|
Marking depth: |
0-2mm(according to material) |
|
Repeated accuracy: |
0.002mm |
|
Working condition: |
humidity 5%-75%, free of condensed water |
|
Marking format: |
graphics, text, bar codes, two-dimensional code etc. |
|
Scanning head: |
high speed optical scanning galvanometer |
|
Focus assistance: |
double red pointer combined in head |
|
Scope of Application |
Suitable for All metas product and 80% nonmteals products |
