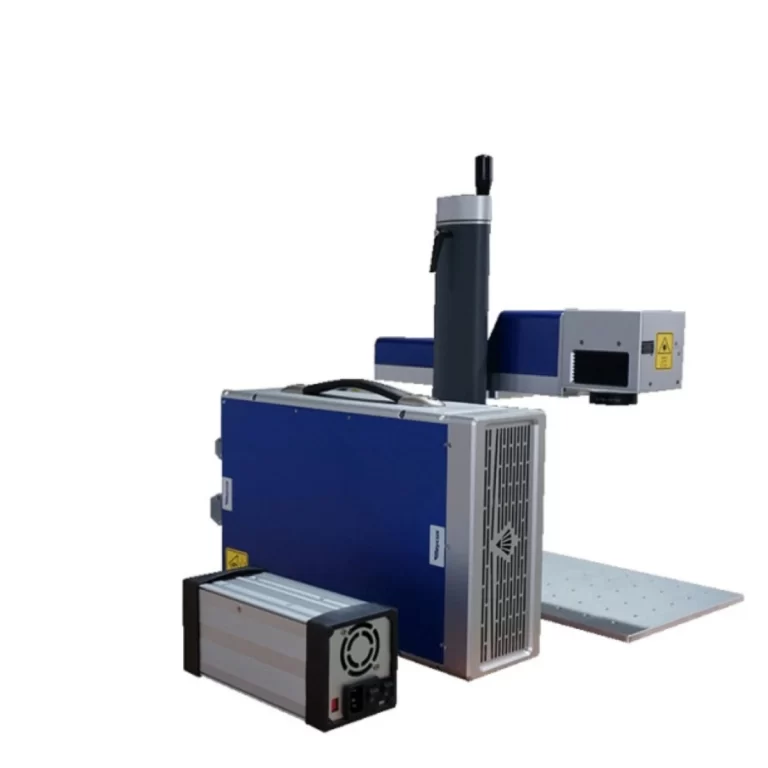

3D Laser marking machine
The appearance of 3D laser marking machine has effectively filled the shortage of laser surface processing. It adopts advanced front focusing optical mode, uses large X and Y axis deflection lenses, controls and moves the dynamic focusing mirror through software, and conducts variable beam expansion before the laser is focused, so as to change the focal length of the laser beam to achieve accurate surface focusing on objects of different heights, so that the laser spot is larger and the marking range can be wider, especially suitable for marking products with uneven surfaces and irregular shapes, Cylinders within a certain radian can also be marked at one time.
Description
- variable focal length, achieve three-dimensional marking
- more suitable for deep carving
- Larger marking range and finer marking effect
- in the same plane, black and white can be achieve, the effect is more rich.
- Can achieve high and low drop 150mm marking
|
Technical parameters |
|
|
Product name: |
3D fiber laser marking machine |
|
Laser power: |
30W 50W 100W |
|
Frequency: |
20KHz-80KHz |
|
Marking area: |
110*110mm(70-300mm optional) |
|
Marking color: |
black, white, colour(according to material) |
|
Output power of laser: |
10%~100% continuously to be adjusted |
|
Cooling mode: |
air cooling |
|
Communication interface: |
USB |
|
The minimum focus facula diameter: |
20μm |
|
Minimal character: |
0.15mm*0.15mm |
|
Marking depth: |
0-2mm(according to material) |
|
Repeated accuracy: |
0.002mm |
|
Working condition: |
humidity 5%-75%, free of condensed water |
|
Marking format: |
graphics, text, bar codes, two-dimensional code etc. |
|
Scanning head: |
high speed optical scanning galvanometer |
|
Focus assistance: |
double red pointer combined in head |
|
Scope of Application |
Suitable for plastic, pig iron, stainless steel, aluminum magnesium alloy, copper, nickel plating, aluminum oxide and other materials of curved surface and irregular shape products marking |
