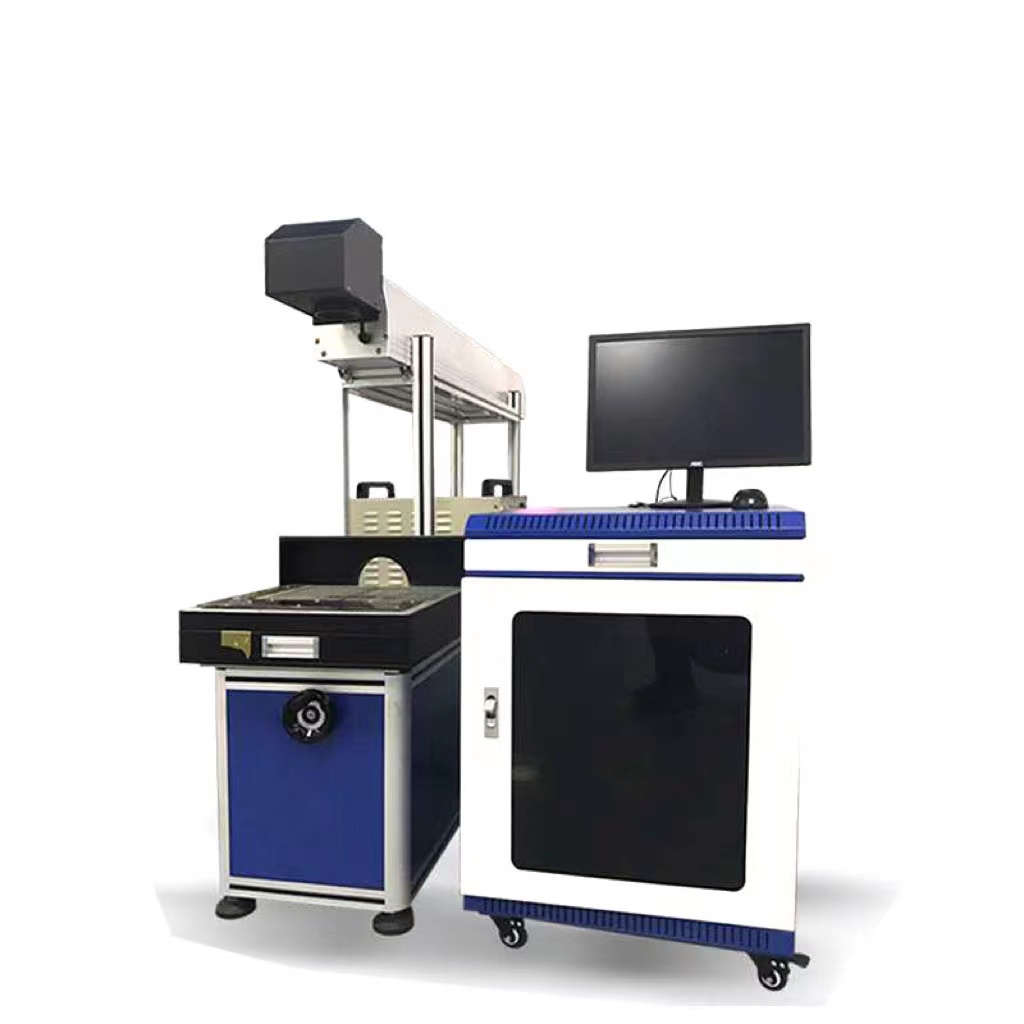

3D Laser engraving machine

Technical parameters

Product name:

3D CO2  laser marking machine

Laser power:

30W 50W 100W

Frequency:

20KHz-80KHz

Marking area:

110*110mm(70-300mm optional)

Marking color:

black, white, colour(according to material)

Output power of laser:

10%~100% continuously to be adjusted

Cooling mode:

air cooling

Communication interface:

USB

The minimum focus facula diameter:

20μm

Minimal character:

0.15mm*0.15mm

Marking depth:

0-2mm(according to material)

Repeated accuracy:

0.002mm

Working condition:

humidity 5%-75%, free of condensed water

Marking format:

graphics, text, bar codes, two-dimensional code etc.

Scanning head:

high speed optical scanning galvanometer

Focus assistance:

double red pointer combined in head

Scope of Application

Suitable for Acrylic, paper, leather, bamboo, etc.
